Draw in timing chain - AR05.10-P-7601-04AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Case (602 589 00 98 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Assembly Link (271 589 02 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover over timing case recess with a clean cloth.
The timing case recess must be secured against parts falling down. Parts that have fallen into the timing case recess must be removed.

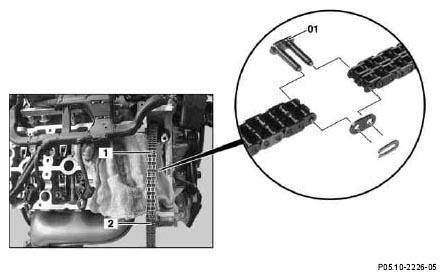

Connect new timing chain (2) and old timing chain (1) together using the assembly link (01).
Fit lock on assembly link (01) in the direction opposite to that in which the timing chain is drawn; otherwise it could get jammed on the slide rails and come off when the timing chain is drawn.

Example

Fig 3: Identifying Timing Chain And Assembly Link
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove rags from timing case recess.
Otherwise, they could get pulled into the timing case recess when the engine is cranked.

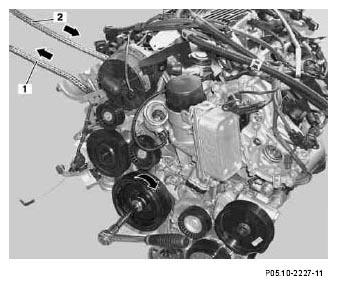

Turn crankshaft slowly in the engine's direction of rotation (arrow) and draw in the new timing chain (2) until the ends of the new timing chain (2) can be connected.
As the new timing chain (2) is being drawn in (arrows), pull out the end of the old timing chain (1) evenly as it becomes free.
Cover over timing case recess with a clean cloth.
The timing case recess must be secured against parts falling down. Parts that have fallen into the timing case recess must be removed.
Detach assembly link (01), and separate old timing chain (1) from new timing chain (2).
The assembly link (01) must be removed. The assembly link is only an aid for assembly and is not suitable for engine operation.

Example presentation

Fig 4: Locating Timing Chain
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
