Remove camshaft pinion pins - AR05.20-P-7201-07AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Engine 156

CAMSHAFT, CAMSHAFT ADJUSTMENT

Number Designation Engine 156
BA05.20-P-1003-02J Bolt connecting bearing pin of camshaft drive gear to crankcase M6 Nm 9
Fig 1: Identifying Threaded Stud (156 589 00 34 00)
G04958289Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Impact Extractor (116 589 20 33 00)
G04958290Courtesy of MERCEDES-BENZ USA
  1. Remove locking bolt (17).
  2. SPECIAL TOOL Screw threaded stud (03) into camshaft pinion pin (8).
  3. SPECIAL TOOL Attach impact extractor (02).
  4. Knock out pinion pin (8).

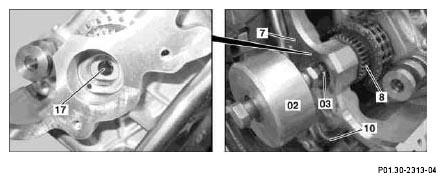

    Fig 3: Identifying Locking Bolt, Threaded Stud, Camshaft Pinion Pin, Knock Out Pinion Pin And Impact Extractor
    G04958291Courtesy of MERCEDES-BENZ USA
