Lock the gear backlash compensation - AR05.20-P-7201-05AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Compressing Tool (156 589 01 63 00)
G07333063Courtesy of MERCEDES-BENZ USA

IMPORTANT The tooth flanks (2a, 2b) are pressed against one another under spring tension. Ensure that the tooth backlash compensation is arrested before installing the camshaft adjuster.

  1. Insert retaining bolt (01b) for tensioning tool (01) in to camshaft adjuster (2).

    IMPORTANT The tensioning tool (01) should make even contact with the camshaft adjuster (2).

  2. Screw in bolt (01s) as far as possible.

IMPORTANT This causes the quadrant (01z) to arrest the tooth flanks (2a, 2b) on the camshaft adjuster (2) in relation to one another.

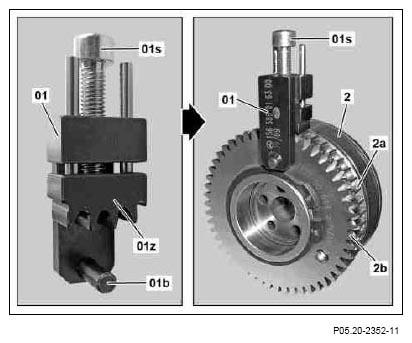

Fig 2: Identifying Tensioning Tool, Camshaft Adjuster And Tooth Flanks
G07320718Courtesy of MERCEDES-BENZ USA
