Check basic position of camshafts - AR05.20-P-6010GZA (ML350, ML550, GL450, GL550): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

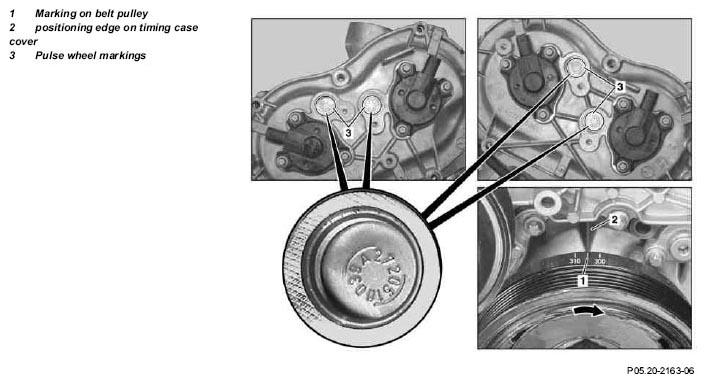

Fig 1: Identifying Timing Case Cover Position

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Remove air filter housing		AR09.10-P-1150GZA
2	Remove Hall sensor on camshafts		AR15.10-P-2000GZA
	Checking
3	Turn engine at crankshaft in the direction of rotation of the engine (arrow) to a 55° Crank before ignition TDC (305° marking on the belt pulley) and check the basic position of the camshafts	The 305° marking on the belt pulley (1) must be aligned with the guide edge on the timing case cover (2) and the markings on the pulse wheel (3) must be located in the center of the sensor bore holes. If necessary, set the basic position of the camshafts when removing/installing the camshaft adjuster: ↓ Remove, install camshaft adjusters
		Exhaust camshaft adjuster	AR05.20-P-7201GZA
		Intake camshaft adjuster	AR05.20-P-7201GZC
4	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Carry out an engine test run and check the engine for leaks
