Notes on installing camshaft bearing bridge - AH05.20-P-2000-01AV
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Engines 112, 113 except 113.960, 113.960 except cylinder shutoff codes 479, 113.962/982/993, 112.951/976
Pay attention to the following notes before installing the camshaft bearing bridges:
- Lubricate the camshaft bearings.
- Due to tolerance reasons, the camshafts must not be replaced individually.
- If the camshaft bearing bridge is damaged, replace the cylinder head complete with the camshaft bearing bridge.
- It not permitted to reuse the bolts M7X84; these must always be replaced.
- Pay attention to tightening torque, slackening diagram and tightening diagram of the bolts M7x84.

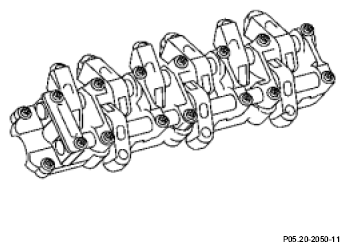

Shown on engine 112
