General notes on timing, markings - AH05.10-P-1000-01A

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Engine 112, 113

Shown on engine 112

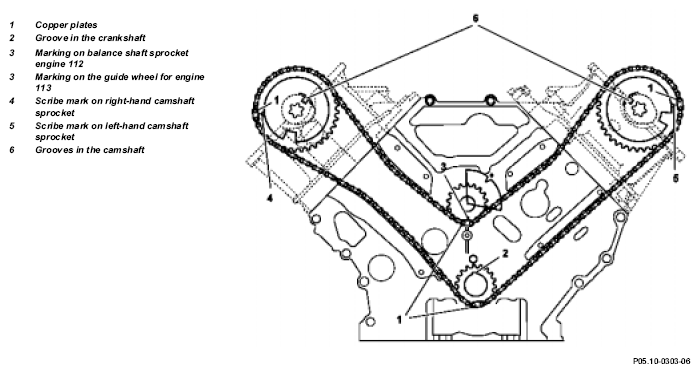

Fig 1: Identifying Timing, Markings - Shown On Engine 112

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The four copper plates for the timing chain facilitate assembly when putting on timing chain. Every copper plate (1) must coincide with one of the markings.

Due to unequal length of timing chain paths, the engine must be cranked up to 14 times until the copper plates are matched again with the markings.
