Adjustable camshaft timing solenoid, component description - GF05.20-P-2100AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156.980 in MODEL 164, 251

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221

Location

The camshaft solenoids are located at the front on respective cylinder head.

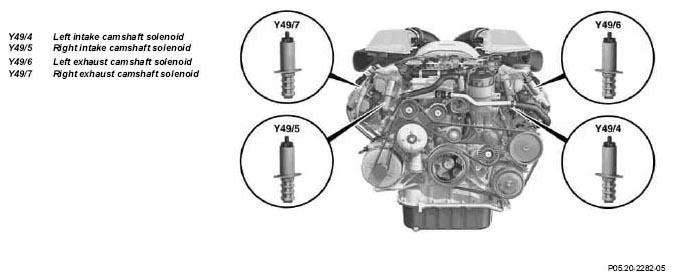

Fig 1: Identifying Camshaft Timing Solenoid Component Location
G04958251Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The camshaft solenoids actuate camshaft adjustment, whereby camshafts are continuously adjusted up a 42° crank angle. Adjustment of camshaft optimizes engine torque development and improves exhaust characteristics.

Design

Solenoids are designed as proportional solenoids which means travel of the anchor and thus the location of the control plunger in the integral control valve is dependent on the current strength in the coil.

Function

Solenoids are actuated at the ground end by the ME-SFI [ME] control unit (N3/10) by means of a PWM signal (pulse width modulated signal). The voltage supply to the solenoid is via "terminal 87".

The integral control plungers are actuated via the map-dependent duty cycle of the PWM signal. To achieve rapid adjustment of the armature, the maximum current (duty cycle 100%) is output for a short period (approx. 0.5 sec). Then a hold-in winding voltage with a lower duty cycle is set.

Solenoid actuate via the duty cycle of control plunger in control valves whereby more or less switching oil (pressure oil) flows in the swivel motor adjuster.

The amount of switching oil in swivel motor adjuster is controlled according to the position of control plunger. This is achieved by bore holes located at various points in the control valves as well as by oil ducts in the swivel motor adjuster rotors.

The camshaft adjustment range is mechanically restricted by the shape of the swivel motor adjuster. If the solenoids are no longer actuated then a rest occurs against the direction of rotation in which the camshafts are mechanically locked (start position).

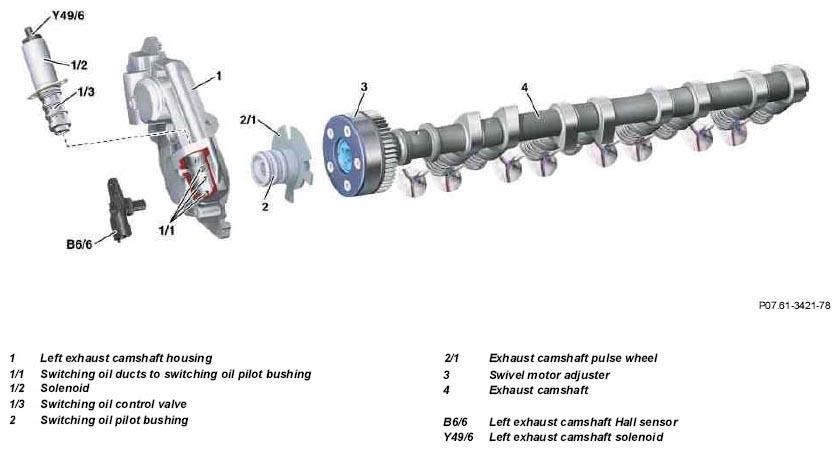

Fig 2: Identifying Camshaft Adjustment Components (Left Exhaust Camshaft)
G04958252Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Camshaft adjustment (left exhaust camshaft)

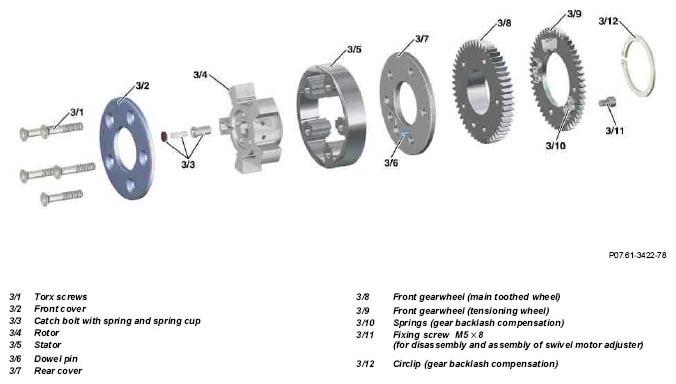

Fig 3: Identifying Swivel Motor Adjuster Components
G04958253Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Swivel motor adjuster
