Position portable lifting platform - AR01.10-P-2500-01A

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

WORKSHOP EQUIPMENT

WE58.40-Z-1006-05A	Lashing strap
WE58.40-Z-1009-05A	Major assembly lifting platform
WE58.40-Z-1010-05A	Universal major assemblies support (in combination with major assemblies lifting table)

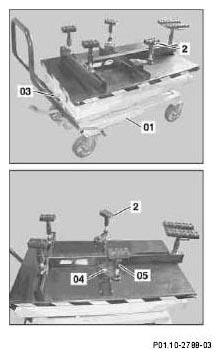

The lifting platform (01) is variably adjustable in the vehicle longitudinal direction at the adjusting screw (03). The mounting plates (2) guided in rails are also variably adjustable in the vehicle longitudinal direction and transverse direction at the adjusting screw (04) to the transmission and front axle carrier. The respectively individual mounting plates (2) can be adjusted for height by means of an adjusting rod (05) to the required tilt of the transmission and front axle carrier.

Fig 1: Identifying Position Portable Lifting Platform

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Ensure that no cables of lines get caught when lowering.

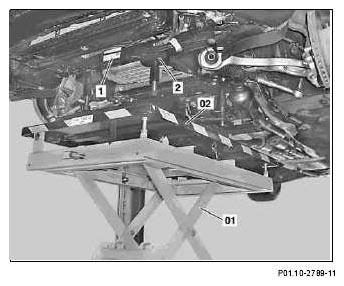

Position lifting platform (01) with aggregate mount (02) under the front axle carrier (1).
Take note in doing so of even alignment of the mounting plates (2) on the engine / transmission unit.

Fig 2: Lifting Platform Position
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

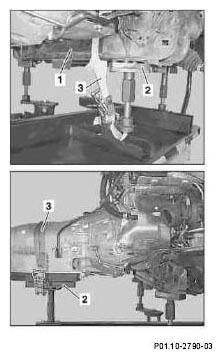

Fix the whole engine / transmission unit by means of tensioning straps (3) to the mounting plates (2).

Fig 3: Identifying Transmission Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
