Inspect cylinders for leaks - AR01.00-P-1300GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

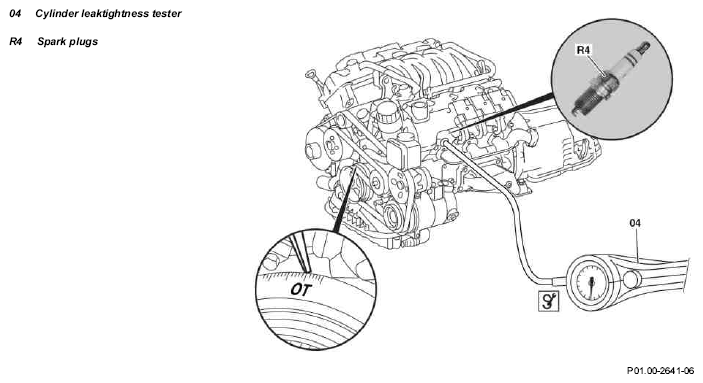

Fig 1: Inspecting Cylinders For Leaks (Engine 113.964)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
1	Bring the engine up to operating temperature (approx. 80°C)	Check the cylinder for leaks only when the engine is at normal operating temperature.
2	Remove key from the ignition lock	On vehicles with Keyless Go, code 889: Press keyless go start/stop button repeatedly until ignition is switched off
3	Open engine hood		AR88.40-P-1000GZ
	Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. Wear protective gloves, protective clothing and eye protection.	AS20.00-Z-0001-01A
4	Undo cap of coolant expansion reservoir
5	Remove oil filler cap
6	Remove a spark plug from each cylinder
	Replace spark plugs		AP15.10-P-1580GZ
7	Position the piston of the cylinder to be checked at the top dead center with the top dead center selector	Crank the engine at the center bolt of the crankshaft in the direction of rotation of the engine.
		Socket wrench bit	Figure
		Cylinder leakage tester	*WH58.30-Z-1015-05A
8	Connect cylinder leak tester (04)	Calibrate cylinder leakage tester (04) and screw the connection hose into the spark plug bore
		Cylinder leakage tester	*WH58.30-Z-1015-05A
	Check
9	Pressurize the cylinder with compressed air and read off the pressure loss on the cylinder leak tester (04)	Cylinder leakage permissible total loss indication	*BE01.00-P-1001-02Z
		Cylinder leaktightness permissible losses at valves and cylinder head gasket	*BE01.00-P-1002-02Z
		Cylinder leakage permissible loss at pistons and piston rings If the crankshaft rotates:↓	*BE01.00-P-1003-02Z
		Install retaining lock for crankshaft	AR03.30-P-5000GZ
10	Check the other cylinders in the firing order of the engine	Firing order	AR01.00-P-1300-03HA
11	Install in the reverse order

CYLINDER LEAKAGE

Number	Designation		All engines
BE01.00-P-1001-02Z	Cylinder leakage permissible total loss indication	%	≤25
BE01.00-P-1002-02Z	Cylinder leaktightness permissible losses at valves and cylinder head gasket	%	≤10
BE01.00-P-1003-02Z	Cylinder leakage permissible loss at pistons and piston rings	%	≤20

Fig 2: Identifying Socket (001 589 65 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1015-05A	Cylinder leakage testing unit
