Remove/install the tensioning device for the oil pump chain - AR18.10-P-2000SX (ML350, ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273

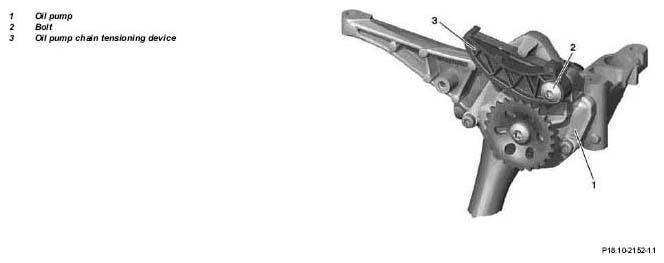

Shown on oil pump for engine 273.961
Fig 1: Identifying Oil Pump Chain Tensioning Device Remove/Install Components - Shown On Oil Pump For Engine 273.961
| Remove/Install | |||
|---|---|---|---|
| Danger | Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |
| 1 | Remove oil pump (1) | ||
| 2 | Unscrew the bolt (2) and take off the tensioning device (3) of the oil pump chain from the oil pump (1) | BA18.10-P-1007-01B | |
| 3 | Install in the reverse order | - |
OIL PUMP TORQUE SPECIFICATION
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA18.10-P-1007-01B | Bolt for oil pump chain tensioning device on oil pump | Nm | 10 | 10 |
