Remove/install the oil level check switch - AR18.40-P-5113SX (ML350, ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272
ENGINE 273

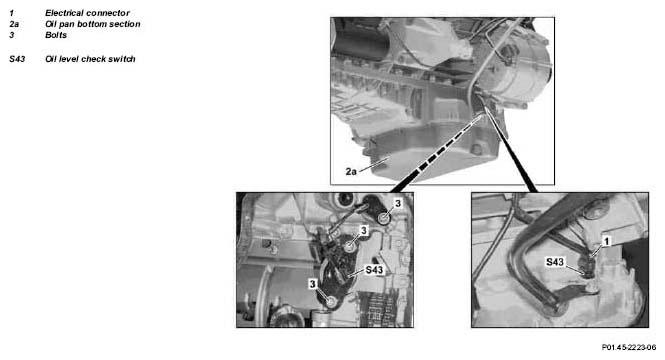

| Remove/install | |||
| 1 | Remove oil pan bottom section (2a) | ||
| 2 | Remove the electrical connector (1) at the oil level check switch (S43) | ||
| 3 | Remove bolts (3) | *BA18.40-P-1001-02B | |
| 4 | Remove oil level check switch (S43) from oil pan | ||
| 5 | Install in the reverse order | ||
| 6 | Read out fault memory and erase if required | STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A |
| Connect up STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
OIL SENSOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA18.40-P-1001-02B | Bolt, oil level check switch to oil pan | Nm | 14 | 14 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnostic system, Compact Passenger Car | 6511 1801 00 |
