Remove/install oil dipstick guide tube - AR18.40-P-3510GZA (ML350, ML550, GL450, GL550): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

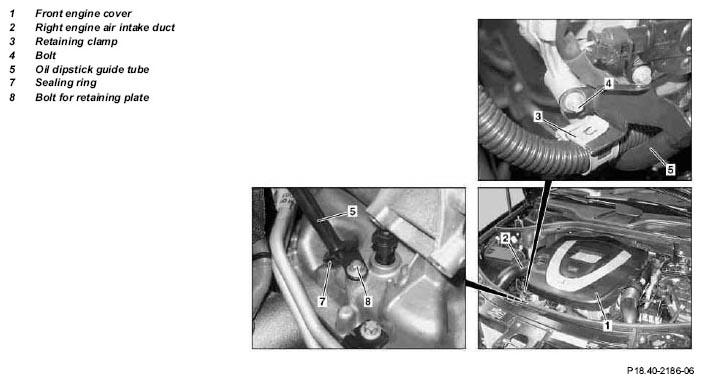

Fig 1: Identifying Oil Dipstick Guide Tube Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

28.7.09

Value changed: engine oil, Specifications for Operating Fluids

Engine 272

*BF18.00-P-1001-01M

	Remove/install
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns from working on the vehicle as it is being started or when the engine is running	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground line of battery	Model 164	AR54.10-P-0003GZ
		Model 251 Insulate ground line clamp as a protection against unintentional contact of ground line with ground point of battery. Vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove the Keyless Go transmitter card or transmitter key from vehicle and store beyond reach of the transmitter (at least 2 m).	AR54.10-P-0003RT
	Notes on battery		AH54.10-P-0001-01A
2	Remove front engine cover (2) and right engine air intake duct (1)
3	Remove air filter housing	Only for model 251 without 4MATIC	AR09.10-P-1150GZA
4	Remove coolant expansion reservoir and place to one side with lines still attached	Only for model 251 without 4MATIC	AR20.30-P-4950RT
5	Remove bolt (4)		*BA01.45-P-1006-01M
6	Drain engine oil, collect if necessary	Installation: Replace sealing ring.
			*BA01.45-P-1001-01M
		Engine oil	*BF18.00-P-1001-01M
7	Remove alternator	Only for model 164 with engine 272 and for model 251 with engine 272 and 4MATIC
		Model 164	AR15.40-P-5032GZA
		Model 251	AR15.40-P-5032RTA
8	Remove oil dipstick
9	Remove oil cooling lines from bracket on engine oil pan	Only for model 251 without 4MATIC
			*BA27.55-P-1005-01D
10	Remove electrical wiring harness retaining clamp (3) from oil dipstick guide tube (5)	Only for vehicles with 4MATIC
11	Remove retaining plate (8) bolt		*BA01.45-P-1006-01M
12	Remove oil dipstick guide tube (5) to the top	Installation: Replace sealing ring (7) on oil dipstick guide tube (5). When installing oil dipstick guide tube (5), make sure sealing ring (7) is not pressed into the oil pan.
13	Install in the reverse order
14	Check engine oil level approx. 5 minutes after switching off engine (after reaching operating temperature), if required adjust to correct level	The vehicle must be on a level surface, otherwise false measurements will occur.
15	Carry out an engine test run and check the engine for leaks
16	Read out fault memory and erase if necessary	Faults which may have been caused by disconnecting wires or by a simulation must be erased in the fault memory after completing the work. STAR DIAGNOSIS diagnostic system

OIL PAN

Number	Designation		Engine 272	Engine 273
BA01.45-P-1001-01M	Oil drain screw to oil pan	Nm	30	30
BA01.45-P-1006-01M	Mounting bolt, oil dipstick guide tube	Nm	9	9

TRANSMISSION OIL COOLING

Number	Designation		Transmission 722.9
BA27.55-P-1005-01D	Bolt, oil cooling line double clamp to bracket	Nm	8
