Remove, install oil temperature regulator - AR18.30-P-3000AMG (ML63 AMG)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove timing case cover | AR01.40-P-8000AMG | |

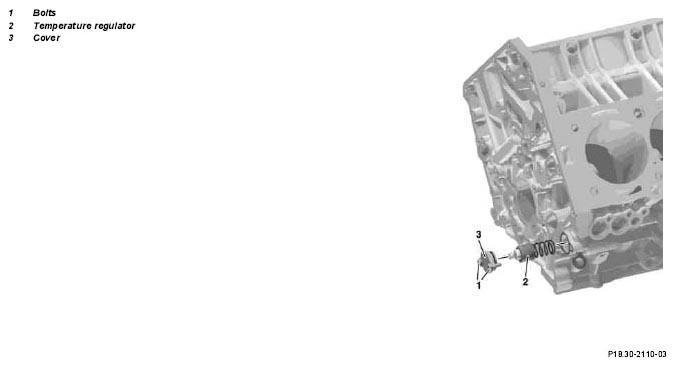

| 2 | Remove bolts (1) | ||
| 3 | Take off cover (3) | ||
| 4 | Remove temperature regulator (2). | ||
| 5 | Install in the reverse order |
