Check oil pressure - AR18.00-P-1250GZS (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

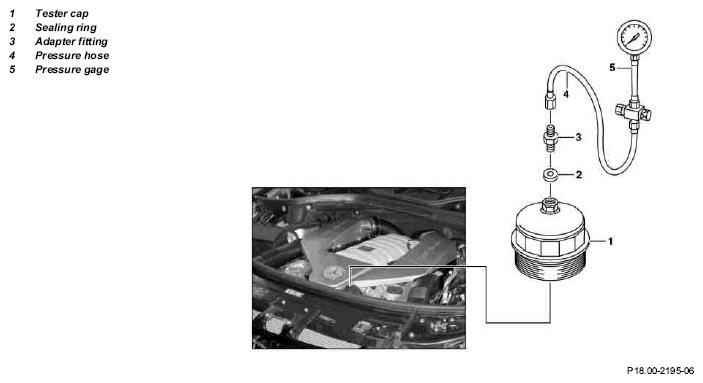

Fig 1: Identifying Sealing Ring, Adapter Fitting, Pressure Gauge, Pressure Hose And Tester Cap

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
1	Open engine hood	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT
2	Remove front engine cover	Do not tilt front engine cover, but lift upwards vertically otherwise the retaining lugs can break off.
3	Remove oil filter cover	Installation: Replace sealing ring.
			*BA18.20-P-1001-01V
		Socket	Fig 2
4	Screw on test connection (1) with sealing ring to oil filter housing	Check whether there is a sealing ring on test connection (1) and mount one if not to prevent leaks.
			*BA18.20-P-1001-01V
		Test cap	Fig 3
5	Screw adapter fitting (3) with sealing ring (2) onto test connection (1)	Adapter fitting	*WH58.30-Z-1011-05A
6	Screw pressure gauge (5) with pressure hose (4) onto adapter fitting (3)	Testing unit	Figure
		Pressure hose	Fig 5
	Checking
7	Check engine oil level and correct if required.	The vehicle must be positioned horizontally on the wheels, otherwise false measurements occur.
8	Guide temperature sensor of the remote thermometer through the oil dipstick guide tube into the engine oil and read off the engine oil temperature from the remote thermometer.	Remote thermometer	Figure
9	Start the engine and measure oil pressure	Bring engine up to operating temperature (approx. 80°C). When the throttle is opened, the oil pressure must rise without any delay.
		Oil pressure at operating temperature	*BE18.00-P-1001-01B
10	Install in the reverse order
11	Check engine oil level and replenish oil if necessary	The vehicle must be positioned horizontally on the wheels, otherwise false measurements occur.
12	Conduct engine test run and check the engine for leaks while it is running	In the event of oil loss determine and eliminate cause, otherwise malfunctions, transmission damage, and serious environmental pollution may occur.
