Component description for the catalytic converter temperature sensor - GF07.04-P-6110GZ

ENGINE 642 in MODEL 164.1 /8

ENGINE 642 in MODEL 463

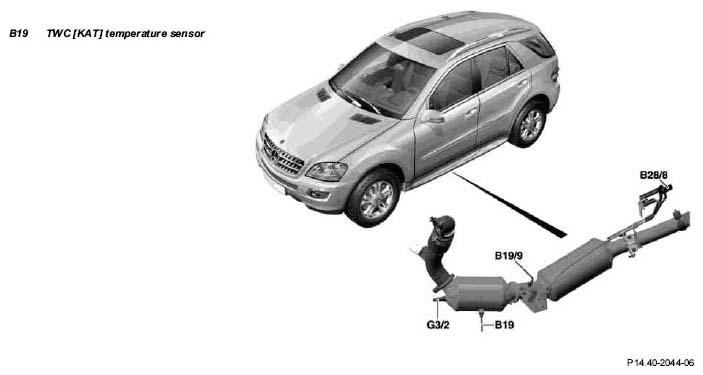

Shown on MODEL 164

Location

The TWC temperature sensor is located on the oxidation catalytic converter.

Task

The TWC temperature sensor determines the current exhaust gas temperature upstream of the oxidation catalytic converter.

Design

The TWC temperature sensor consists of a metal housing with a negative temperature coefficient (NTC) resistor and a 2-pin plug connector.

Function

The integral NTC resistor in the TWC temperature sensor changes its electrical resistance according to the exhaust gas temperature. Electrical resistance decreases as temperature increases.
