Completing steps for vehicle handover for ASSYST PLUS - AR00.20-P-0005GZ

MODEL 164, 251

Shown on model 164.1

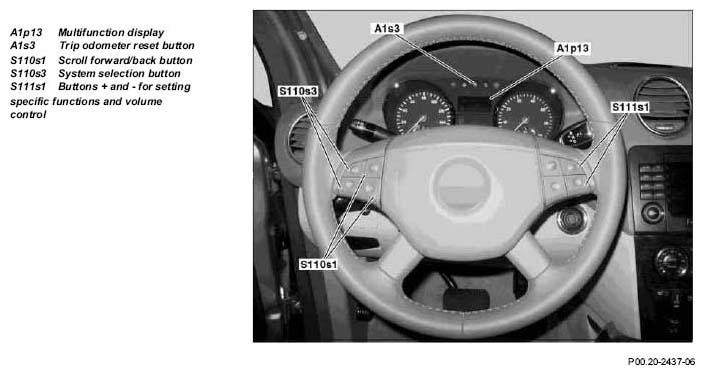

Fig 1: Identifying Vehicle Handcover Button

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1	Turn transmitter key in EIS [EZS] control unit to position "1"
2	Press system selection button (S110s3) repeatedly until the basic display (mileage or temperature display) is shown in the top of the multifunction display (A1p13)
3	Briefly press trip odometer reset button (A1s3) 3 times	An acoustic signal can be heard and the voltage is shown in the top of the multifunction display (A1p13).
4	Press lower scroll forward/back button (S110s1)	The "Service menu" appears in the top of the multifunction display (A1p13).
5	Press buttons + and -, setting of specific functions and volume control (S111s1) repeatedly and select "Confirmation" menu item
6	Press lower system selection button (S110s3)	"Confirmation" appears in the top of the to confirm. multifunction display (A1p13) and the menu item "Complete service" is highlighted.
7	Press buttons + and -, setting of specific functions and volume control (S111s1) repeatedly and select the "Vehicle handover" menu item	The "Vehicle handover" menu item is highlighted. After pressing the "Vehicle handover" menu item one time, this menu item is no longer displayed.
8	Press lower system selection button (S110s3) to confirm.	The message "Vehicle handover confirmed" appears in the top of the multifunction display (A1p13).
9	Press the upper system selection button (S110s3) repeatedly until the basic display is shown in the top of the multifunction display (A1p13)
10	Turn transmitter key in EIS [EZS] control unit to position "0"
