Perform adjustments to the control system - AR54.30-P-1000-02GZ

Deactivate/activate easy entry/exit feature

1. Switch on ignition.
2. Press the system selection button (S110s3) repeatedly until the "settings" menu appears in the multifunction display (A1p13).
3. Press the scroll forward/back button (S110s1).
4. Press button + and -, adjustment of specific functions and volume control (S111s1), repeatedly until the "comfort" menu item is marked.

   Shown on model 164.1

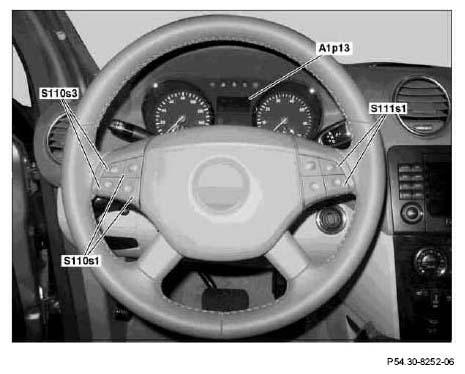

   Fig 1: Identifying Scroll Forward/Back Button And Adjustment Of Specific Functions And Volume Control With Multifunction Display

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Press scroll forward/back button (S110s1) repeatedly until "activate access aid" appears in the multifunction display (A1p13).
6. Press button + and -, adjustment of specific functions and volume control (S111s1), until the "off" menu item is marked.
7. To activate the entry/exit aid, press the button + and -, adjustment of specific functions and volume control (S111s1) repeatedly until the "steering column" or "steering column+seat" menu item is marked.
8. Switch off ignition.
