Remove/install locks for load compartment floor - AR68.80-P-5810GZ

MODEL 164

Illustrated on model 164.1 with luggage compartment cover, code 723

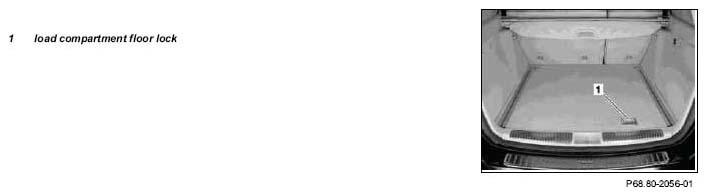

Fig 1: Identifying Load Compartment Floor Lock - Illustrated On Model 164.1 With Luggage Compartment Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 164.1 with luggage compartment cover, code 723

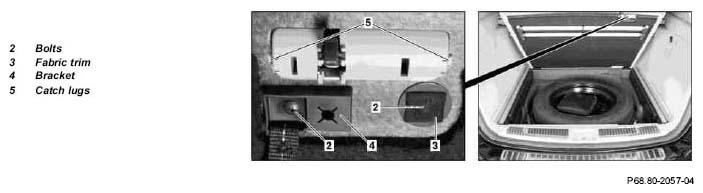

Fig 2: Identifying Bolts, Fabric Trim, Bracket And Catch Lugs - Illustrated On Model 164.1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Open tailgate
2	Open luggage compartment cover	Only on vehicles with luggage compartment cover, code 723.
3	Open load compartment floor
4	Carefully remove fabric trim (3)	Only until bolts (2) are accessible
5	Unscrew bolt (2)	Secure load compartment floor against falling down.
6	Remove bracket (4)	Installation:  Observe installation position of bracket (4)
7	Unclip load compartment floor lock (1) from catch lugs (5)
8	Remove load compartment floor lock (1) upward.
9	Install in the reverse order
