Location and assignment of line and connectors - GF00.19-P-1000MAA: Notes
MODEL 164

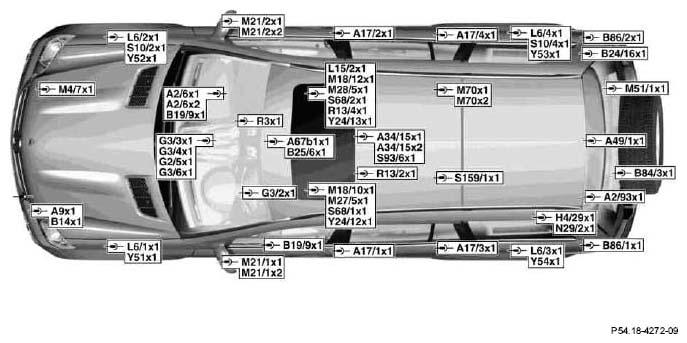

| A2/6x1 | CD changer connector 1 | GF00.19-P-1000-05MAA | |
| A2/6x2 | CD changer 2 connector | GF00.19-P-1000-05MAA | |
| A9x1 | Refrigerant compressor connector | GF00.19-P-1000-01MAA | |
| A17/1x1 | Left front Keyless Go door handle connector | GF00.19-P-1000-04MAA | |
| A17/2x1 | Right front Keyless Go door handle connector | GF00.19-P-1000-05MAA | |
| A17/3x1 | Left rear Keyless Go door handle connector | GF00.19-P-1000-04MAA | |
| A17/4x1 | Right rear Keyless Go door handle connector | GF00.19-P-1000-05MAA | |
| A34/15x1 | Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-P-1000-05MAA | |
| A34/15x2 | Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-P-1000-05MAA | |
| A49/1x1 | Interference filter 1 input connector | GF00.19-P-1000-07MAA | |
| A67b1x1 | Hands-free system microphone group connector | GF00.19-P-1000-04MAA | |
| B14x1 | Outside temperature indicator temperature sensor connector | GF00.19-P-1000-38MAA | |
| B19/9x1 | Temperature sensor connector upstream of diesel particulate filter | GF00.19-P-1000-01MAA | |
| B24/16x1 | Rear-end door opening angle recognition sensor connector | GF00.19-P-1000-07MAA | |
| B25/6x1 | Sound amplifier microphone connector | GF00.19-P-1000-04MAA | |
| B84/3x1 | Backup camera connector | GF00.19-P-1000-06MAA | |
| B86/1x1 | Left rear-end door closing obstruction sensor strip connector | GF00.19-P-1000-06MAA | |
| B86/2x1 | Right rear-end door closing obstruction sensor strip connector | GF00.19-P-1000-07MAA | |
| G3/2x1 | O2 sensor upstream of TWC [KAT] connector | GF00.19-P-1000-04MAA | |
| G3/3x1 | Left O2 sensor upstream of TWC [KAT] connector | GF00.19-P-1000-04MAA | |
| G3/4x1 | Right O2 sensor upstream of TWC [KAT] connector | GF00.19-P-1000-04MAA | |
| G3/5x1 | Left O2 sensor downstream of TWC [KAT] connector | GF00.19-P-1000-04MAA | |
| G3/6x1 | Right O2 sensor downstream of TWC [KAT] connector | GF00.19-P-1000-04MAA | |
| H4/29x1 | Subwoofer connector | GF00.19-P-1000-06MAA | |
| L6/1x1 | RPM sensor connector | GF00.19-P-1000-02MAA | |
| L6/2x1 | RPM sensor connector | GF00.19-P-1000-01MAA | |
| L6/3x1 | RPM sensor connector | GF00.19-P-1000-06MAA | |
| L6/4x1 | RPM sensor connector | GF00.19-P-1000-07MAA | |
| M4/7x1 | Engine and AC electric suction fan with integrated control connector 1 | GF00.19-P-1000-02MAA | |
| M18/10x1 | Left front seat backrest ventilation motor group connector | GF00.19-P-1000-04MAA | |
| M18/12x1 | Right front seat backrest ventilation motor group connector | GF00.19-P-1000-05MAA | |
| M21/1x1 | Left electrically adjustable and heated exterior mirror connector | GF00.19-P-1000-04MAA | |
| M21/1x2 | Left electrically adjustable and heated exterior mirror connector | GF00.19-P-1000-04MAA | |
| M21/2x1 | Right electrically adjustable and heated exterior mirror connector | GF00.19-P-1000-05MAA | |
| M21/2x2 | Right electrically adjustable and heated exterior mirror connector | GF00.19-P-1000-05MAA | |
| M27/5x1 | Driver backrest angle adjustment motor connector 1 | GF00.19-P-1000-04MAA | |
| M28/5x1 | Front passenger backrest angle adjustment motor connector 1 | GF00.19-P-1000-05MAA | |
| M51/1x1 | Rear-end door hydraulic pump connector | GF00.19-P-1000-07MAA | |
| M70x1 | Rear axle differential actuator motor connector | GF00.19-P-1000-05MAA | |
| M70x2 | Rear axle differential actuator motor connector | GF00.19-P-1000-05MAA | |
| N29/2x1 | Rear air conditioning electronic blower regulator connector | GF00.19-P-1000-06MAA | |
| R3x1 | Front cigar lighter (with ashtray illumination) connector | GF00.19-P-1000-05MAA | |
| R13/2x1 | Left front backrest heated cushion connector | GF00.19-P-1000-04MAA | |
| R13/4x1 | Right front backrest heater element connector | GF00.19-P-1000-05MAA | |
| S10/2x1 | Right front brake pad contact sensor connector | GF00.19-P-1000-02MAA | |
| S10/4x1 | Right rear brake pad contact sensor connector | GF00.19-P-1000-07MAA | |
| S68/1x1 | Left front seat belt buckle and seat belt warning switch connector | GF00.19-P-1000-04MAA | |
| S68/2x1 | Right front seat belt buckle and seat belt warning switch connector | GF00.19-P-1000-05MAA | |
| S93/6x1 | MB-Info and telediagnosis button group connector | GF00.19-P-1000-05MAA | |
| S159/1x1 | Right easy entry feature microswitch connector, 2nd seat row | GF00.19-P-1000-04MAA | |

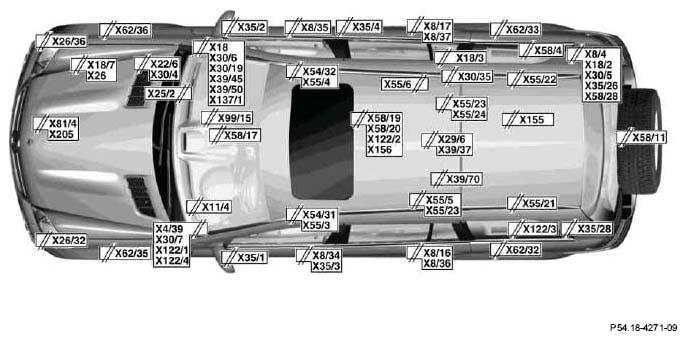

| X4/39 | Steering column module separation point | GF00.19-P-1000-04MAA | |
| X8/4 | Rear-end door separation point | GF00.19-P-1000-07MAA | |
| X8/16 | Left rear door printed wiring harness connector | GF00.19-P-1000-04MAA | |
| X8/17 | Right rear door printed wiring harness connector | GF00.19-P-1000-05MAA | |
| X8/34 | Left front door handle connector | GF00.19-P-1000-04MAA | |
| X8/35 | Right front door handle connector | GF00.19-P-1000-05MAA | |
| X8/36 | Left rear door handle connector | GF00.19-P-1000-04MAA | |
| X8/37 | Right rear door handle connector | GF00.19-P-1000-05MAA | |
| X11/4 | Data link connector | GF00.19-P-1000-04MAA | |
| X18 | Interior/cockpit connector | GF00.19-P-1000-05MAA | |
| X18/2 | Interior/roof connector | GF00.19-P-1000-07MAA | |
| X18/3 | Interior/fuel tank connector | GF00.19-P-1000-07MAA | |
| X18/7 | Interior/engine connector | GF00.19-P-1000-02MAA | |
| X22/6 | Automatic transmission/intelligent servo module connector | GF00.19-P-1000-02MAA | |
| X25/2 | Engine compartment/interior compartment connector | GF00.19-P-1000-05MAA | |
| X26 | Interior and engine wiring harness connector | GF00.19-P-1000-02MAA | |
| X26/32 | Left front engine compartment/bumper connector | GF00.19-P-1000-01MAA | |
| X26/36 | Right front engine compartment/bumper connector | GF00.19-P-1000-38MAA | |
| X29/6 | Center console intermediate connector | GF00.19-P-1000-06MAA | |
| X30/4 | Right voltage distributor (CAN) connector | GF00.19-P-1000-05MAA | |
| X30/5 | Left voltage distributor (CAN) connector | GF00.19-P-1000-07MAA | |
| X30/6 | Cockpit voltage distributor (CAN) connector | GF00.19-P-1000-05MAA | |
| X30/7 | Voltage distributor (CAN) connector | GF00.19-P-1000-04MAA | |
| X30/19 | Passenger-side voltage distributor (CAN C) connector | GF00.19-P-1000-05MAA | |
| X30/35 | Telematics CAN voltage distributor connector | GF00.19-P-1000-07MAA | |
| X35/1 | Left front door separation point | GF00.19-P-1000-04MAA | |
| X35/2 | Right front door separation point | GF00.19-P-1000-05MAA | |
| X35/3 | Left rear door separation point | GF00.19-P-1000-04MAA | |
| X35/4 | Right rear door separation point | GF00.19-P-1000-05MAA | |
| X35/26 | PTS, roof warning indicator connector | GF00.19-P-1000-07MAA | |
| X35/28 | PTS, rear bumper connector | GF00.19-P-1000-06MAA | |
| X39/37 | CTEL separation point | GF00.19-P-1000-06MAA | |
| X39/45 | Walkman separation point | GF00.19-P-1000-05MAA | |
| X39/50 | Fiber optic cable connector (MOST) | Can also be installed in a different location, depending on special equipment | GF00.19-P-1000-05MAA |
| X39/70 | FFS [RBA} microphone array connector | GF00.19-P-1000-04MAA | |
| X54/31 | Driver seat external power feed separation point | GF00.19-P-1000-04MAA | |
| X54/32 | Front passenger seat external power feed separation point | GF00.19-P-1000-05MAA | |
| X55/3 | Left front seat contacting strip | GF00.19-P-1000-04MAA | |
| X55/4 | Right front seat contacting strip | GF00.19-P-1000-05MAA | |
| X55/5 | Left rear seat adjustment connector block | GF00.19-P-1000-04MAA | |
| X55/6 | Right rear seat adjustment connector block | GF00.19-P-1000-05MAA | |
| X55/21 | Left 3rd seat row connector block | GF00.19-P-1000-06MAA | |
| X55/22 | Right 3rd seat row connector block | GF00.19-P-1000-07MAA | |
| X55/23 | Left 2/3 bench seat (2nd seat row) backrest/cushion separation point | GF00.19-P-1000-06MAA | |
| X55/24 | Right 1/3 bench seat (2nd seat row) backrest/cushion separation point | GF00.19-P-1000-05MAA | |
| X58/4 | Load compartment socket | GF00.19-P-1000-07MAA | |
| X58/11 | Trailer hitch socket (7-pin) | GF00.19-P-1000-06MAA | |
| X58/17 | Front interior socket | GF00.19-P-1000-05MAA | |
| X58/19 | Left 2nd seat row socket | GF00.19-P-1000-05MAA | |
| X58/20 | Right 2nd seat row socket | GF00.19-P-1000-05MAA | |
| X58/28 | Electric brake control separation point | GF00.19-P-1000-07MAA | |
| X62/32 | Left rear axle multiple circuit junction connector | GF00.19-P-1000-04MAA | |
| X62/33 | Right rear axle multiple circuit junction connector | GF00.19-P-1000-05MAA | |
| X62/35 | BWI [BBV]/RPM left front axle connector | GF00.19-P-1000-01MAA | |
| X62/36 | BWI [BBV]/RPM right front axle connector | GF00.19-P-1000-02MAA | |
| X81/4 | Engine wiring harness/throttle valve actuator connector | GF00.19-P-1000-02MAA | |
| X99/15 | Airbag separation point | GF00.19-P-1000-05MAA | |
| X122/1 | Center air outlet connector | GF00.19-P-1000-04MAA | |
| X122/2 | Booster blower connector (air conditioning) | GF00.19-P-1000-05MAA | |
| X122/3 | Rear AC connector | GF00.19-P-1000-06MAA | |
| X122/4 | Cockpit AC connector | GF00.19-P-1000-04MAA | |
| X137/1 | VICS+ETC voltage supply separation point | GF00.19-P-1000-05MAA | |
| X155 | Electric loading floor separation point | GF00.19-P-1000-07MAA | |
| X156 | Illuminated cup holder separation point | GF00.19-P-1000-05MAA | |
| X205 | Tumble flap/variable intake manifold switchover valves connector | GF00.19-P-1000-02MAA | |
| Y24/12x1 | Driver NECK-PRO head restraint solenoid connector | GF00.19-P-1000-04MAA | |
| Y24/13x1 | Front passenger NECK-PRO head restraint solenoid connector | GF00.19-P-1000-05MAA | |
| Y51x1 | Left front axle damping valve unit connector | GF00.19-P-1000-01MAA | |
| Y52x1 | Right front axle damping valve unit connector | GF00.19-P-1000-02MAA | |
| Y53x1 | Damping valve unit connector | GF00.19-P-1000-07MAA | |
| Y54x1 | Damping valve unit connector | GF00.19-P-1000-06MAA | |
| GF00.19-P-1000-01MAA | Location and assignment of line and plug connectors, engine compartment, left | GF00.19-P-1000-01MAA | |
| GF00.19-P-1000-02MAA | Location and assignment of line and plug connectors, engine compartment, right | GF00.19-P-1000-02MAA | |
| GF00.19-P-1000-04MAA | Location and assignment of line and plug connectors, interior compartment, left | GF00.19-P-1000-04MAA | |
| GF00.19-P-1000-05MAA | Location and assignment of line and plug connectors, interior compartment, right | GF00.19-P-1000-05MAA | |
| GF00.19-P-1000-06MAA | Location and assignment of line and plug connectors, trunk, left | GF00.19-P-1000-06MAA | |
| GF00.19-P-1000-07MAA | Location and assignment of line and plug connectors, trunk, right | GF00.19-P-1000-07MAA | |
| GF00.19-P-1000-38MAA | Location and assignment of line and plug connectors - front bumper | GF00.19-P-1000-38MAA |
