Location and assignment of line and plug connectors, interior compartment, left - GF00.19-P-1000-04MAA

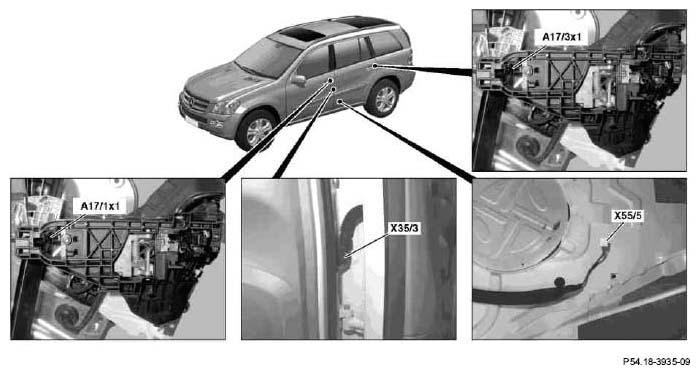

Fig 1: Identifying Interior Compartment, Connectors, Line And Plug Location (Left) (1 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

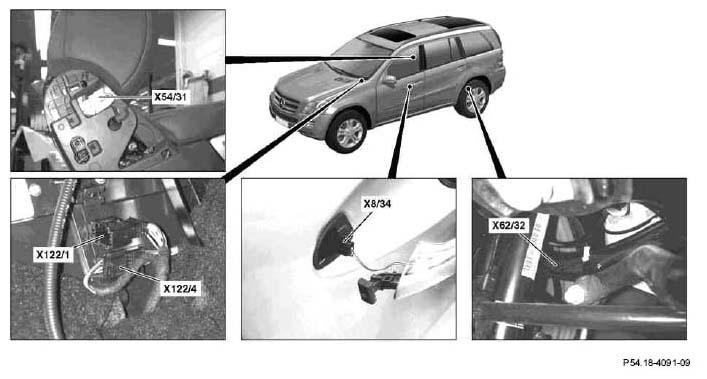

Fig 2: Identifying Interior Compartment, Connectors, Line And Plug Location (Left) (2 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

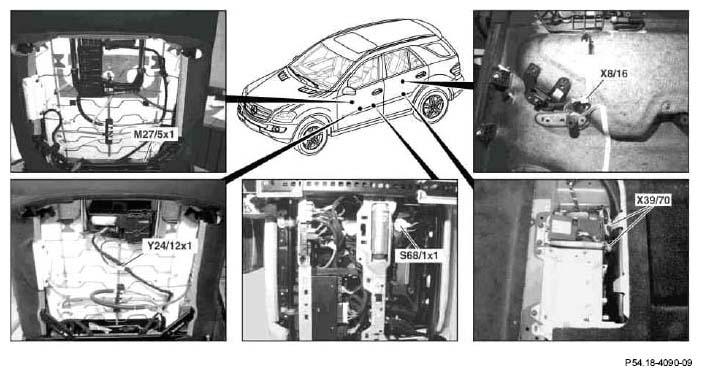

Fig 3: Identifying Interior Compartment, Connectors, Line And Plug Location (Left) (3 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

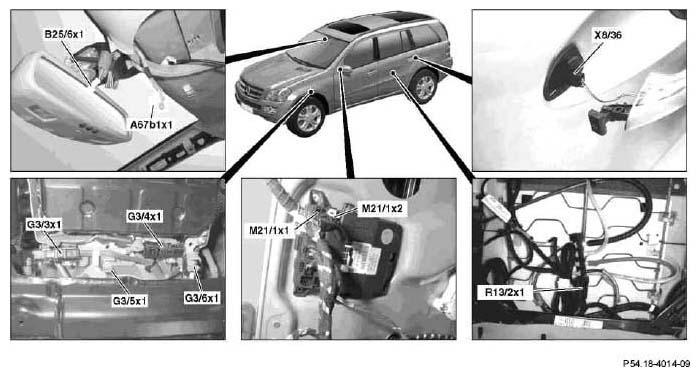

Fig 4: Identifying Interior Compartment, Connectors, Line And Plug Location (Left) (4 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

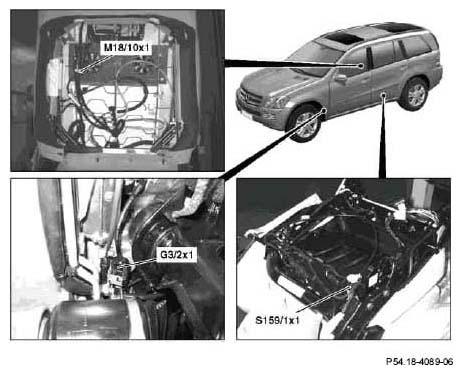

Fig 5: Identifying Interior Compartment, Connectors, Line And Plug Location (Left) (5 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

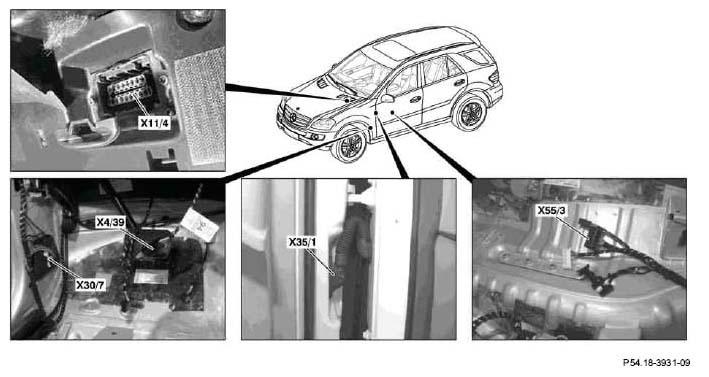

Fig 6: Identifying Interior Compartment, Connectors, Line And Plug Location (Left) (6 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
A17/1x1	Left front Keyless Go door handle connector	BN	1		KG
		RD	2		KG
		BU	3		KG
		BN	4
		BU	5
A17/3x1	Left rear Keyless Go door handle connector	BN	1
		BU	2
A67b1x1	Hands-free system microphone group connector		1	TR	CTEL separation point
			2	GN	CTEL separation point
A67b1x1	Hands-free system microphone group connector		1	TR
			2	GN
			3	GY	USA
			3		Japan/except USA
			4	OG
			5	VT	USA
			5		Japan/except USA
			6	PK	USA
			6	VT	VCS [SBS], except USA
					COMAND Japan
B25/6x1	Sound amplifier microphone connector	WH	1
		BN	2
G3/2x1	O2 sensor upstream TWC [KAT] connector
	M642		1	GYRD
			2	GNBU
			3	GYBN
			4	RDBK
			5	GYWH
			6	GNBK
G3/3x1	Left O2 sensor upstream of TWC [KAT] connector
	M113	RDGN	1
		BNBK	2
		GN	3
		BK	4
	M156		1	GYPK
			2	GNPK
			3	GYOG
			4	RDBK
			5	GYRD
			6	GNYE
	M272	BKVT	1
		BKGN	2
		PK	3
		RDGN	4
		YEWH	5
		BKYE	6
	M273		1	BKVT
			2	BKGN
			3	BNYE
			4	RDYE
			5	YEWH
			6	BKYE
	M629		1	GYRD
			2	GNBU
			3	GYBN
			4	RDBK
			5	GYBK
			6	GNBK
G3/4x1	Right O2 sensor upstream of TWC [KAT] connector
	M113	RDGN	1
		BNGY	2
		GN	3
		BKBN	4
	M272	BU	1
		BKBU	2
		GN	3
		RDGN	4
		WH	5
		RDGN	6
	M156		1	GYRD
			2	GNBU
			3	GYBN
			4	RDBK
			5	GYWH
			6	GNBK
	M273		1	BU
			2	BKBU
			3	GN
			4	RDGN
			5	WH
			6	BNBK
	M629		1	GYPK
			2	GNPK
			3	GYWH
			4	RDBK
			5	GYRD
			6	GNBU
G3/5x1	Left O2 sensor downstream of TWC [KAT] connector
	M113	RDGN	1
		BNBK	2
		YEBN	3
		YE	4
	M272	RDGN	1
		VTYE	2
		BNYE	3
		GYWH	4
	M156	RDBK	1
		BNBK	2
		BUBN	3
		YE	4
	M273	RDYE	1
		VTYE	2
		BNWH	3
		GYWH	4
G3/6x1	Right O2 sensor downstream of TWC [KAT] connector
	M113	RDGN	1
		BNGY	2
		BUBN	3
		BU	4
	M272	RDGN	1
		VT	5
		BNYE	3
		RD	4
	M156	RDBK	1
		BNGY	2
		BUBN	3
		BU	4
	M273	RDGN	1
		VT	2
		BNWH	4
		RD	4
M18/10x1	Left front seat backrest ventilation motor group connector		1	BU
			2	GY
M21/1x1	Left electrically adjustable and heated exterior mirror connector		1
			2
			3
			4
			5
			6
			7
			8
			9
			10
M21/1x2	Left electrically adjustable and heated exterior mirror connector		1
			2
			3
			4
			5
			6
			7
			8
			9
			10
M27/5x1	Driver backrest angle adjustment motor connector 1 (Valid for seat adjustment without memory)		1	GYWH
			2	BKWH
			3
			4
M27/5x1	Driver backrest angle adjustment motor connector 1 (Valid for seat adjustment with memory)		1	BKWH
			2	GY
			3	VT
			4	OG
R13/2x1	Left front backrest heated cushion connector		1	BUBK
			2	BN
S68/1x1	Left front seat belt buckle and seat belt warning switch connector		1	BN
			2	BK
S159/1x1	Connector for right 2nd seat row easy entry microswitch		1	BNBK
			2
			4	GYBK
X4/39	Steering column module separation point GN		1	GN
		GY	2	GY
		BN	3	BN
		VT	4	VT
		WHBU	5	WHBU
		BN	6	BN
X8/16	Left rear door printed wiring harness connector TR		1	GYWH
		TR	2	VTWH
		TR	3	RDWH
		TR	4	BN
		TR	5	WHBU	Interior light package
		TR	6	BN	Interior light package
		TR	7	OG	up to 08/06
		TR	7	BN	as of 09/96
		TR	8	BN	up to 08/06
		TR	8	OG	as of 09/06
X8/34	Left front door handle connector	RDBK	1	BN	KG
		VTBK	2	RD	KG
		PKBK	3	BU	KG
		YEBK	4	BN
		WHBK	5	BU
X8/36	Left rear door handle connector	BNWH	1	BN
		PKWH	2	BU
X11/4	Data link connector		1
			2
			3	RDWH	M113
			4	BN
			5	BN
			6	GYWH
			7	YE	M113
			8	BKBU	Up to 08/06
			9
			10
			11
			12
			13
			14	GY
			15
			16	RD
X30/7	Voltage distributor (CAN) connector		1.1	BNRD
			1.2	BN
			2.1	BNRD
			2.2	BN
			3.1	BNRD
			3.2	BN
			4.1	BNRD
			4.2	BN
			5.1	BNRD	FDS
			5.2	BN	FDS
			6.1	BNRD
			6.2	BN
			7.1	BNRD	Rear-end door, model 164.1
			7.2	BN	Rear-end door, model 164.1
			8.1	BNRD	Parktronic
			8.2	BN	Parktronic
			9.1	BNRD	Seat adjustment with memory
			9.2	BN	Seat adjustment with memory
			10.1	BNRD
			10.2	BN
X35/1	Left front door separation point	BNRD	1	BNRD
		BN	2	BN
		BK	3	BK	RHD
		BN	4	BN	RHD
		TR	5	TR	TR RHD
		YE	6	YE	RHD
		RDBK	10	RDBK
		BN	11	BN
		GNBU	12	GNBU	KG, up to 08/06
		WHBK	13	WHBK
		BU	14	BU
		RD	17	RD
		BKWH	18	BKWH	KG, up to 08/06
		WH	19	WH
		BUBK	20	BUBK
		BN	23	BN
		GYBU	24	GYBU	KG, up to 08/06
		YEBK	25	YEBK	KG
		WHBK	26	RDBK	KG
		BNBK	29	BNBK	LHD
X35/3	Left rear door separation point	GYWH	3	GYWH
		VTWH	4	VTWH
		RDWH	5	RDWH
		BN	6	BN
		BN	7	BN
		GYBK	8	GYBK
		GNBK	9	GNBK
		BUWH	10	BUWH	Rear sidebag
		BN	11	BN	Rear sidebag
		WHBK	12	WHBK	KG, up to 08/06
		YEBK	13	YEBK
		WH	16	WH
		YEBK	18	YEBK	KG, up to 08/06
		YE	19	YE
		BNBK	22	BNBK
		GYBU	24	GYBU	KG, up to 08/06
		BNWH	25	BNWH	KG, up to 08/06
		PKWH	26	PKWH	KG, up to 08/06
		GNBU	27	GNBU	KG, up to 08/06
		BKWH	28	BKWH	KG, up to 08/06
		PKBK	29	PKBK
		VTBK	30	VTBK
		WH	31	WH
		orange	32	OG
		WHBU	33	WHBU	Interior light package
X39/70	FFS [RBA} microphone array connector
	UPCI [UHI] (USA)	TR	2.1	TR
		GN	2.2	GN
		GY	2.3	GY
		orange	2.4	OG
		VT	2.5	VT
		PK	2.6	PK
		TR	2.7	TR	up to 08/06
		GN	2.8	GN	up to 08/06
	TELE AID (USA)		2.1		up to 08/06
		GN	2.2	TR	up to 08/06
			2.3		up to 08/06
			2.4		up to 08/06
			2.5		up to 08/06
		PK	2.6	GN	up to 08/06
		TR	2.7	TR	up to 08/06
		GN	2.8		up to 08/06
X54/31	Driver seat external power feed separation point ESA [ESV], all-electric BKWH
		BNWH	1	BKWH
		BKWH	2	BNWH
		BNWH	3	BKWH
		BKWH	4	BNWH
X54/31	Driver seat external power feed separation point
	With memory	BKWH	1
		BNWH
		BNWH	2
		BNWH
			3
			4
X55/3	Left front seat contacting strip	BN	1.2	BN	Fully electric seat adjustment
		RDWH	1.3	RDWH	Fully electric seat adjustment
		RDBK	1.4	RDBK	Fully electric seat adjustment
			1.1		Partially electric seat adjustment
		BN	1.2	BN	Partially electric seat adjustment
		BN
		BKWH	1.3	BKWH	Partially electric seat adjustment
		BKWH
			1.4		Partially electric seat adjustment
		BNYE	2A.5	BNYE
		BN	2A.6	BN
		VTGN	2A.7	VTGN
		YEBU	2A.8	YEBU	Crash-active head restraints
		BU	2A.9	BU
		BKWH	2A.10	BKBU	Crash-active head restraints
		YE	2A.11	YE
		BN	2A.13	BN
		BK	2A.14	BN
		RDWH	3	RDWH	Partially electric seat adjustment
			4A1.1	BN	HS
			4A1.2	BUBK	HS
			4A2.1	BN	HS, LHD
			4A2.1	BN	HS, LHD
			4A2.2		HS, RHD
			4A2.1		HS, RHD
			4A2.2		HS, RHD
		BN	4B.3	BN	Interior light package
		YE	4B.4	YE	Interior light package
		RD	4C.1	RD	SBL
		GYBK	4C.2	GYBK	SBL
		BN	4C.3	BN	SBL
		BU	5.1	BU
		BUWH	5.2	BUWH
		GN	5.3	GN
		GNWH	5.4	GNWH
		BK	5.5	BK
		orange	5.6	BK
		OGWH	5.7	OGWH
		RD	5.8	RD
		RDWH	5.9	RDWH
		BKWH	5.10	BKWH
		BN	6.1	BN
		RD	6.2	RD
		RD	6.3	RD
		BN	6.4	BN
		BKWH	6.5	BKWH	Rear audio
		BK	6.6	BK	Rear audio
X55/5	Left rear seat adjustment connector block
	Model 164.1	BN	1.2	BN
		BU	1.13	BU
	Model 164.1	GN	2.1	GN
		VT	2.2	VT
		BN	2.3	BN
	Model 164.1	BN	3.1	BN
		BU	3.2	BU
	Model 164.8	GN	4.1	GN
		VT	4.2	VT
		BN	4.3	BN
	Model 164.8	BN	5.1	BN
		WH	5.2	WH
		WH
X62/32	Left rear axle multiple circuit junction connector		D.1	VTBK	all except M113
			D.2	RDBK	all except M113
X62/32	Left rear axle multiple circuit junction connector		D.1	RDBK	M113
			D.2	WHBK	M113
X122/1	Center air outlet connector	YEBK	1	YEBK
		GYBK	2	GYBK
		GYBU	3	GYBU
		GN	4	GN
		BN	7	BN
		PK	8	PK
		BN	9	BN
		BUWH	10	BUWH
X122/4	Cockpit AC connector		1	YEBK
			2	GYBK
			3	GYBU
			4	GYBK
			5	VTBK
Y24/12x1	Driver NECK-PRO head restraint solenoid connector	YEBU	1
		BKWH	2
