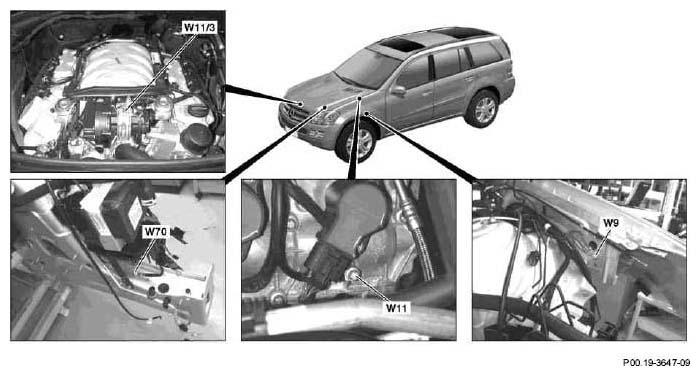

| W9 |
Ground (left front, at lamp unit) |
→ A6 |
STH heater unit |
2.2 |
| |
Xenon |
→ E1 |
Left front headlamp unit |
S3.1 |
| |
|
|
|
S3.4 |
| |
|
→ E1 |
Left front headlamp unit |
S1.1 |
| |
|
|
|
S2.1 |
| |
|
→ E1e3 |
Left standing and parking lamp |
S4.1 |
| |
|
→ E1e2 |
Left low beam |
S1.1 |
| |
|
→ E1e6 |
Left side marker lamp |
S5.1 |
| |
|
→ M5/2 |
HCS [SRA] pump |
2 |
| |
|
→ M13 |
Coolant circulation pump |
2 |
| |
|
→ S62 |
ATA [EDW] hood switch |
1 |
| |
|
→ Y16 |
STH switchover valve |
2 |
| |
|
→ Z60/4 |
Front fog lamp wiring harness connector sleeve (circuit 31) |
|
| W11 |
Ground (engine - electrical line connected) |
|
|
|
| |
M156 |
→ C4/2 |
Radio interference suppression capacitor 2 |
2 |
| |
M272, M273 |
→ M33 |
Electric air pump |
2 |
| |
M642 |
→ N14/3 |
Glow time output stage |
2.6 |
| |
M629 |
→ N14/3 |
Glow time output stage |
1.6 |
| |
M156 |
→ S43 |
Oil level check switch |
1 |
| |
M156 |
→ T1/1 |
Cylinder 1 ignition coil |
3 |
| |
M156 |
→ T1/2 |
Cylinder 2 ignition coil |
3 |
| |
M156 |
→ T1/3 |
Cylinder 3 ignition coil |
3 |
| |
M156 |
→ T1/4 |
Cylinder 4 ignition coil |
3 |
| W11/3 |
Ground (engine, left) |
|
|
|
| |
M113 |
→ C4 |
Radio interference suppression capacitor |
1 |
| |
M113 |
→ M33 |
Electric air pump |
2 |

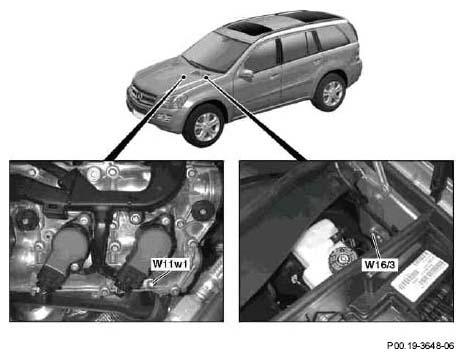

| W11w1 |
Ground (engine - electrical line connected), left cylinder bank |
|
|
|
| |
M272, M273 |
→ C4/2 |
Radio interference suppression capacitor 2 |
2 |
| |
M272 |
→ T1/4 |
Cylinder 4 ignition coil |
3 |
| |
M272, M273 |
→ T1/5 |
Cylinder 5 ignition coil |
3 |
| |
M272, M273 |
→ T1/6 |
Cylinder 6 ignition coil |
3 |
| |
M273 |
→ T1/7 |
Ignition coil cylinder 7 |
3 |
| |
M273 |
→ T1/8 |
Ignition coil cylinder 8 |
3 |
| W16/3 |
Ground (left assembly compartment, power ground) |
|
|
|
| |
M272, M273 |
→ N3/10 |
ME control unit |
F.2 |
| |
|
|
|
F.4 |
| |
|
|
|
F.6 |
| |
USA |
→ H3 |
Alarm signal horn |
2 |
| |
except USA |
→ H3/1 |
Alarm signal siren |
2 |
| |
|
→ M6/1 |
Wiper motor |
3 |
| |
as of 09/06 |
→ R2/1 |
Center washer nozzle heater |
1 |
| |
as of 09/06 |
→ R2/2 |
Left heated windshield washer nozzle |
1 |
| |
as of 09/06 |
→ R2/3 |
Right washer nozzle heater |
1 |
| |
M272, M273 |
→ Z6 |
Ground connector sleeve |
|
| |
M272, M273 |
→ Z6/99 |
Transmission circuit 31 connector sleeve |
|
| |
up to 08/06 |
→ Z108/1 |
Circuit 31 washer nozzle heater connector sleeve |
|
| W70 |
Ground (ESP) |
→ N47-5 |
ESP control unit |
16 |
| |
|
|
|
47 |
