Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment right - GF00.19-P-3000-02MAA

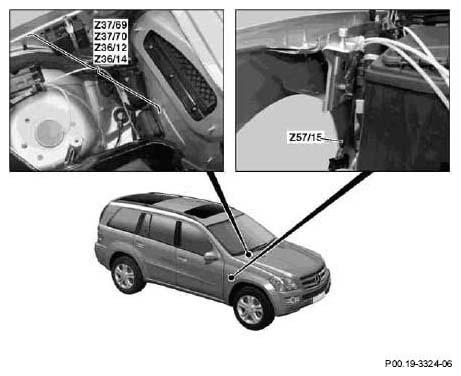

Fig 1: Identifying Cable Connections In Wiring Harness Location (Right)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Ground point/Z-connector sleeve	Designation	Component	Designation	Plug Pin
Z36/12	Headlamp range adjustment (HRA [LWR]) control bus connector sleeve
	Xenon headlamp	← N71	Headlamp range adjustment control unit	4
		→ E1	Left front headlamp unit	S3.3
		→ E2	Right front headlamp unit	S3.3
Z36/14	Static headlamp range adjustment signal connector sleeve
	Halogen headlamps	← S1	Rotary light switch	11
		→ E1	Left front headlamp unit	S2.2
		→ E2	Right front headlamp unit	S2.2
Z37/69	Dynamic CAN bus (high) connector sleeve	← B24/15	Micromechanical turn rate sensor AY pickup	2
		→ A89	DTR controller unit	4
		→ N47-5	ESP control unit	29
Z37/70	Dynamic CAN bus (low) connector sleeve	← B24/15	Micromechanical turn rate sensor AY pickup	1
		→ A89	DTR controller unit	5
		→ N47-5	ESP control unit	25
Z57/15	Right engine compartment connector sleeve, circuit 56B
	Halogen headlamps	← N10	front SAM control unit	D.10
		→ E2e2	Right low beam	S1.4
		→ E2	Right front headlamp unit	S2.3
