Remove/install front axle differential propeller shaft - AR41.10-P-0070GZ

MODEL 164

Shown on model 164 without offroad package, code 430

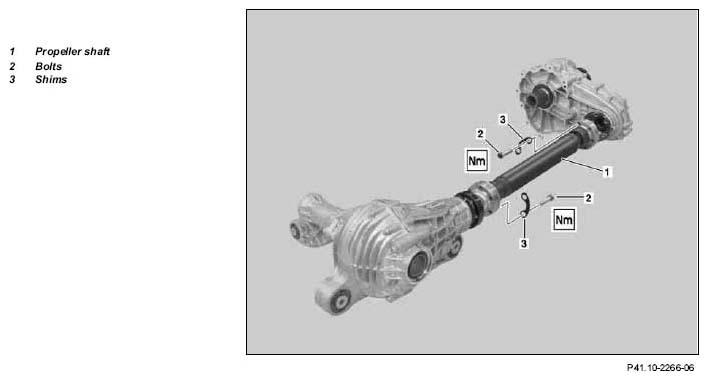

Fig 1: Identifying Front Axle Differential Propeller Shaft Removal/Install Components - Shown On Model 164

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by moving parts that can pinch, crush  or, in extreme cases, even sever  extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1.1	Remove plastic connecting piece between rear bottom section of soundproofing and engine crossmember	Vehicles with diesel engine.
1.2	Remove plastic connecting piece between rear section of under-ride guard and engine crossmember	Vehicles with offroad package, code 430.
2	Remove diagonal strut from right-hand side of rear engine crossmember	All except vehicles with engine 642.
			*BA22.10-P-1007-03G
			*BA22.10-P-1009-03G
3	Remove cross strut from left-hand side of rear engine crossmember	All except vehicles with engine 642.
			*BA22.10-P-1006-03G
			*BA22.10-P-1008-03G
4	Support rear of engine crossmember and detach from under-floor	All except vehicles with engine 642.
			*BA22.10-P-1005-03G
5	Lower transfer case slightly	All except vehicles with engine 642.
6	Mark position of propeller shaft (1) relative to flange of front axle gear and relative to flange of transfer case.	In order to be able to reproduce the plant installation position when installing.
7	Remove bolts (2) from transfer case	Installation:  It is absolutely essential to observe tightening procedure otherwise noise can develop and vibrations can occur. Installation:  Pay attention to cleanliness of the contact surfaces, if necessary clean the contact surfaces of the bolts (2).	AR41.10-P-0070-03GZ
			*BA41.10-P-1003-01F
			Figure
8	Remove bolts (2) from front axle gear	Installation:  It is absolutely essential to observe tightening procedure otherwise noise can develop and vibrations can occur. Installation:  Pay attention to cleanliness of the contact surfaces, if necessary clean the contact surfaces of the bolts (2).	AR41.10-P-0070-03GZ
			*BA41.10-P-1004-01F
			Figure
9	Remove propeller shaft (1) downward	Installation:  Make sure that the installation direction of the propeller shaft (1) is correct.
	Checking
10	Check constant velocity joint and double cardan U-joint for wear and damage	If necessary, replace propeller shaft (1).
11	Install in the reverse order

PROPELLER SHAFT

Number	Designation			Model 164.1/8
BA41.10-P-1003-01F	Self-locking bolt, propeller shaft to transfer case (to front axle)	Stage 1	Nm	40
		Stage 2	∠°	90
BA41.10-P-1004-01F	Self-locking bolt, propeller shaft to front axle gear	Stage 1	Nm	40
		Stage 2	∠°	90

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 164
BA22.10-P-1005-03G	Bolt, rear engine crossmember to body	Nm	55
BA22.10-P-1006-03G	Bolt for cross strut on engine crossmember	Nm	45
BA22.10-P-1007-03G	Bolt for diagonal strut on engine crossmember	Nm	45
BA22.10-P-1008-03G	Bolt for cross strut on body	Nm	45
BA22.10-P-1009-03G	Bolt for diagonal strut on body	Nm	45
