Remove/install tank recess - AR88.60-P-2000GZ

MODEL 164

Shown on model 164.1

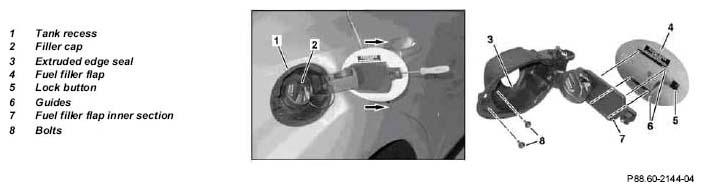

Fig 1: Identifying Tank Recess Remove/Install Components - Shown On Model 164.1

G05260792

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
1	Open fuel filler flap (4)	Vehicles should not be locked.
2	Unlock lock button (5) with suitable tool, slide fuel filler flap (4) in direction of arrow and remove from fuel filler flap inner section (7)
3	Remove retaining strap from fuel filler inner section (7)
4	Unscrew fuel filler flap (2) and remove with retaining tape
5	Remove screws (8)
6	Loosen tank recess (1) and remove tank filler neck
	Install
7	Install lip (3) of tank recess (1) over tank filler neck.	Carefully install lip (3) of tank recess (1) over tank filler neck, otherwise it can tear. Coat lip (3) on tank recess (1) with lubricant.
		Anti-friction agent	*BR00.45-Z-1010-06A
8	Align tank recess (1) and screw in bolts (8)
9	Screw fuel filler flap (2) to filler neck	Check fuel filler flap (2), seal in fuel filler flap (2) and retaining strap for damage. Replace fuel filler flap (2) completely, if only one of the components mentioned is damaged.
10	Install retaining strap on fuel filler inner section (7)
11	Position fuel filler flap (4) with guides (6) on fuel filler inner section (7), slide fuel filler flap (4) in opposite direction of arrow until lock button (5) arrests perceptibly.	Check fuel filler flap (4) for damage, replace if required
12	Close fuel filler flap (4)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Anti-friction agent	A 000 989 03 67
