Remove/install engine hood catch - AR88.40-P-3200GZ
MODEL 164.1/8
Shown on vehicle with anti-theft alarm system (ATA), code 551

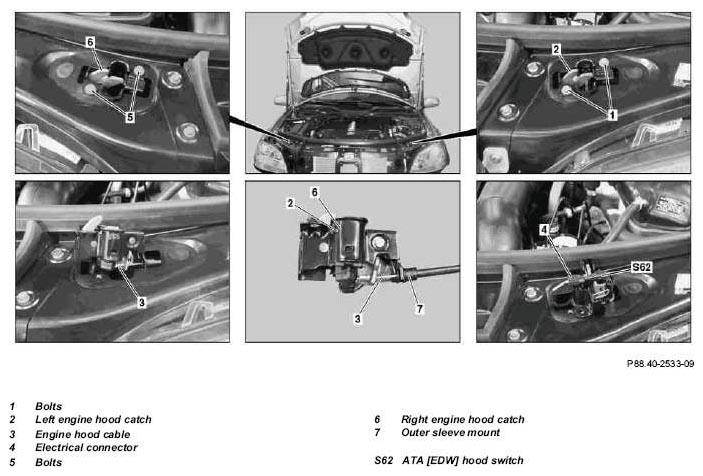

Fig 1: Identifying Engine Hood Catch Remove/Install Components - Shown On Vehicle With Anti-Theft Alarm System (ATA), Code 551
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | AR88.40-P-1000GZ | |
| 2 | Unscrew bolts (1) and remove left engine hood lock (2) upward | *BA88.40-P-1003-01K | |
| 3 | Unclip outer sleeve mount (7) from engine hood cable (3) on left engine hood lock. | ||
| 4.1 | Disconnect electrical connector (4) from ATA hood switch (S62) | ||
| 5 | Unscrew bolts (5) and remove right engine hood lock (6). | *BA88.40-P-1003-01K | |
| 6 | Unclip outer sleeve mount (7) from engine hood cable (3) on right engine hood lock (6). | ||
| 7 | Install in the reverse order |
ENGINE HOOD SPECIFICATIONS
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA88.40-P-1003-01K | Screw, engine hood lock to radiator crossmember | Nm | 12 |
