Remove/install underfloor paneling - AR61.30-P-1001GZ

MODEL 164

Shown on model 164.1 with engine 113

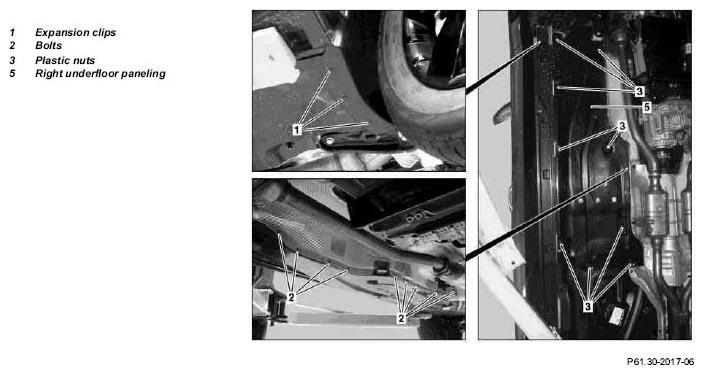

Fig 1: Identifying Underfloor Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1 with engine 113

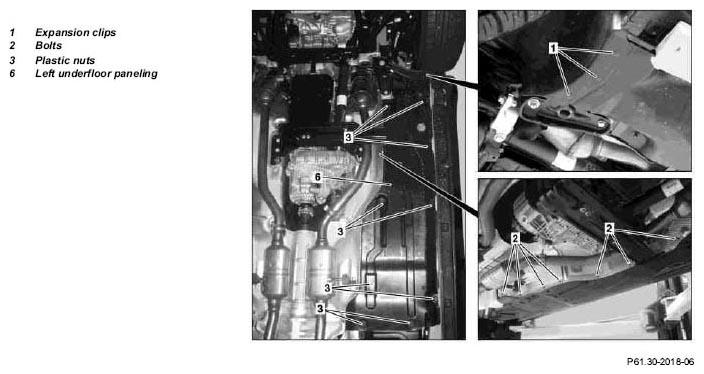

Fig 2: Identifying Expansion Clips, Left Underfloor Paneling, Plastic Nuts And Bolt

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1 with engine 113

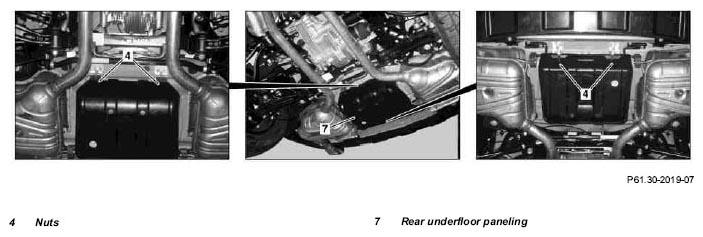

Fig 3: Identifying Rear Underfloor Paneling And Nuts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Number and position of expansion clips (1), bolts (2) and plastic nuts (3) can vary according to vehicle model.
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between lifting platform columns and position the four mounting plates at the indicated lifting platform attachment points specified by the manufacturer.	AS00.00-Z-0010-01A
1	Lift/jack up vehicle		AR00.60-P-1000GZ
2	Remove expansion clips (1)
3	Unscrew bolt (2)
4	Unscrew plastic nuts (3) and nuts (4), remove left underfloor paneling (6) as well as right underfloor paneling (5) and rear underfloor paneling (7).	The sections can also be removed separately.
5	Install in the reverse order
