Retrofit illuminated door sill molding - AZ82.20-P-0001AMM

MODEL 164.1## 1#

Installation of door sill molding (2-fold) with "AMG" lettering

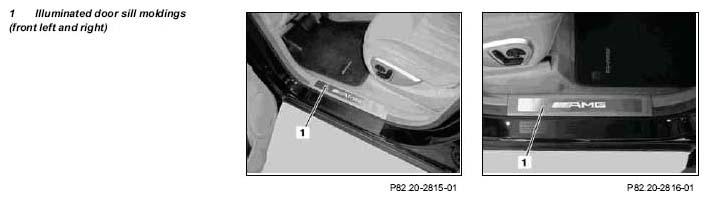

Fig 1: Identifying Illuminated Door Sill Moldings (Front Left And Right)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal
	Risk of death caused by contact with parts conducting high voltages.	Do not come into contact with parts that are under high voltage. Persons who wear electronic implants (e.g. heart pacemakers) must not  carry out any work on such components.	AS00.00-Z-0020-01A
1	Remove side paneling in trunk	Right side only.
			AR68.30-P-4800GZ
2	Remove paneling on left and right B-pillar	Do not unscrew seat belt.
			AR68.30-P-4700GZ
3	Remove rear fuse and relay box	Do not disconnect electrical connectors.
			AR54.15-P-1261GZ
4			Tilt back rear bench seat
5	Remove cover from floor below rear bench seat
	Install
6	Retrofit wiring harness.	Route wiring harness for illuminated door sill molding and connect	AZ82.70-P-0001-04AMM
7	Carry out function check
8	Assemble in the reverse order	Operation steps 6 to 1. When installing the door sill moldings, please ensure that the door sill moldings are not installed at the wrong sides and that the wiring harness is not pinched by the door sill molding.
