Upper control panel control unit, component description - GF54.21-P-6040G

MODEL 463.306/336/346 as of model year 2011/YoM 10

MODEL 463.202/222/236/237 as of model year 2009/YoM 08

MODEL 463.247/248/249/254 up to 31.8.08 as of model year 2007

MODEL 463.270/271/303/340/341 as of model year 2007

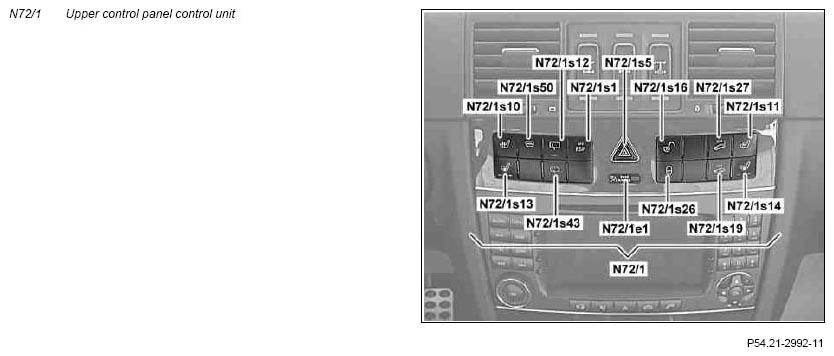

Location

The upper control panel control unit is located at the top of the center console.

Design

The upper control panel control unit contains the following operating and display components:

• Automatic child seat recognition airbag OFF indicator lamp (N72/1e1)
• ESP OFF switch (N72/1s1)
• Hazard warning system switch (N72/1s5)
• Left front HS [SIH] switch (N72/1s10)

  (with code (H10) Driver and front passenger heated seats)

• Right front HS [SIH] switch (N72/1s11)

  (with code (H10) Driver and front passenger heated seats)

• Rear door wiper switch (N72/1s12)
• Left front seat ventilation switch (N72/1s13) (as of 1.9.08 with code (S50) Seat ventilation for driver and front passenger seat)
• Right front seat ventilation switch (N72/1s14) (as of 1.9.08 with code (S50) Seat ventilation for driver and front passenger seat)
• 'Unlock CL [ZV]' interior switch (N72/1s16)
• IMS [IRS] OFF switch (N72/1s19) (with code (FZ8) breaking and entering-/antitheft alarm system with interior protection)
• 'Lock CL [ZV]' interior switch (N72/1s26)
• TS [AS] OFF switch and ATA [EDW] function indicator (N72/1s27)

  (with code (FZ5) Antitheft alarm system (ATA [EDW]) or with code (FZ8) breaking and entering/antitheft alarm system with interior protection)

• Rear window wipe/wash switch (N72/1s43)
• Windshield heater switch (N72/1s50) (with code (F49) heated windshield)

Task

The upper control panel control unit passes on the requests of the respective switches via the interior CAN to the front signal acquisition and actuation module (SAM) (N10/1) or to the rear signal acquisition and actuation module (SAM) (N10/2).

Discrete inputs

• Circuit 30
• Circuit 31
• Signal to automatic child seat recognition airbag OFF indicator lamp from restraint systems control unit (N2/7)

Discrete outputs

• Left front seat heater pad (R13/1)

  (with code (H10) Heater for driver and front passenger seat)

• Left front backrest heater pad (R13/2)

  (with code (H10) Heater for driver and front passenger seat)

• Right front seat heater pad (R13/3)

  (with code (H10) Heater for driver and front passenger seat)

• Right front backrest heater pad (R13/4)

  (with code (H10) Heater for driver and front passenger seat)

• Left front seat ventilation blower regulator (N29/5) (as of 1.9.08 with code (S50) Seat ventilation for driver and front passenger seat)
• Right front seat ventilation blower regulator (N29/6) (as of 1.9.08 with code (S50) Seat ventilation for driver and front passenger seat)
