Determine caster value - AR40.20-P-0336AC

MODEL 460, 461, 463

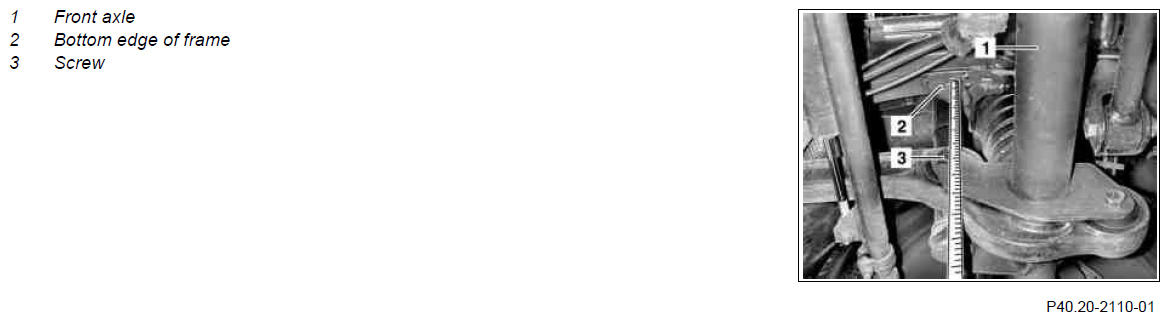

Fig 1: Identifying Front Axle, Bottom Edge Of Frame And Screw

Courtesy of MERCEDES-BENZ USA

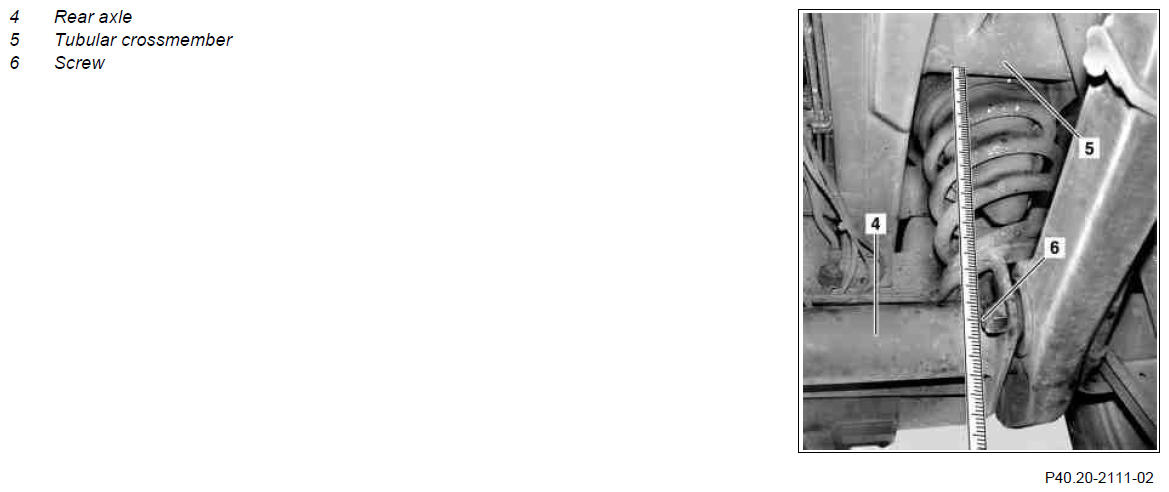

Fig 2: Identifying Rear Axle, Tubular Crossmember And Screw

Courtesy of MERCEDES-BENZ USA

1	Measure the distance between the center of the front bolt (6) for attaching the trailing arm to the rear axle (4) and bottom edge of the tubular crossmember (5)	This distance is the supplementary dimension for the rear axle which is required in step 3 for determining the specified caster value. It has the designation "a".
2	Measure the distance between the center of the rear bolt (3) for attaching the trailing arm to the front axle (1) and the bottom edge of the frame (2)	This distance is the supplementary dimension for the front axle which is required in step 3 for determining the specified caster value. It has the designation "b".
3.1	Enter the auxiliary dimensions determined in steps 1 and 2 into the electronic measuring system's computer	The auxiliary dimensions correspond to the level of the front and rear axles, the computer then calculates the caster specified value using these values.
3.2	Determine specified caster value in nomogram	If an electronic measuring system is not available for use then the caster specified value must be determined with the aid of a nomogram.
		Wheelbase 2400 mm	AR40.20-P-0200-01AC
		Wheelbase 2850 mm except model 461.331	AR40.20-P-0200-01AD
		Wheelbase 2850 mm for model 461.331 only	AR40.20-P-0200-01AE
		Wheelbase 3120 mm, 3400 mm Caster	*BE40.20-P-1003-11A

TEST VALUES FOR FRONT WHEEL ALIGNMENT

Number	Designation			Model 460, 461, 463 with front axle 730.3
BE40.20-P-1003-11A	Caster	Specified value nomogram		AR40.20-P-0200-01AC
		-		AR40.20-P-0200-01AD
		-		AR40.20-P-0200-01AE
		Permissible tolerance	∠°	±40'
		Permissible tolerance between left and right	∠°	±30'
