Installing, removing |
|
|
| 1 |

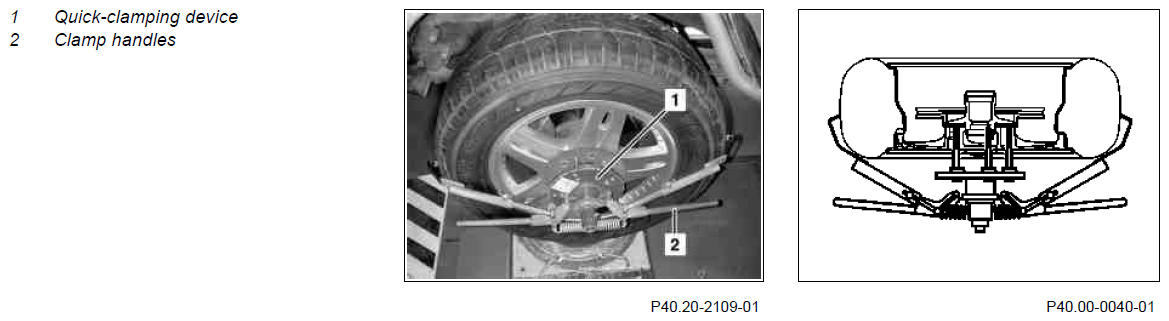

Mount quick-clamping attachment (1) to front and rear wheels |
Check quick-clamping device (1) at regular intervals in accordance with manufacturer's specifications.
The mounting bell is centered on the front wheel hub or rear axle shaft flange by locating the tracer pins in the five mounting holes in the rim. For this reason the mounting holes must not be contaminated. |
|
Quick-clamping device |
Fig 2 |
| 2 |
Pull out clamp handles (2) |
|
|
| 3 |
Attach wheel mirrors or measurement sensors |
Check wheel mirrors and measurement pickups at regular intervals in accordance with the manufacturer's specifications. |
|
| 4 |
Remove in the reverse order |
|
|
