240 589 00 62 00 Assembly top for mounting rear differential - WS35.00-P-0202B

FG 35/Set B

MODEL 215.374 /379, 220.074 /174 /179, 215.376, 220.176, 240

Use:

Assembly stand to support rear differential unit for dismantling and assembly

VEHICLE

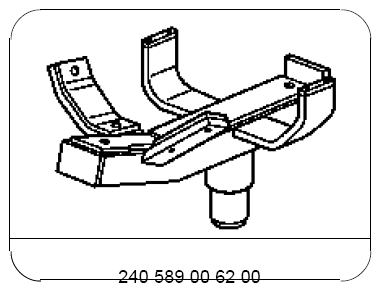

Fig 1: Identifying Assembly Top For Mounting Rear Differential (240 589 00 62 00)
G07888471Courtesy of MERCEDES-BENZ USA
