240 589 00 33 00 Removal and insertion device - WS35.00-P-0204B

FG 35/Set B

MODEL 240

Part 240 589 00 33 01 Sleeve FG 35/Set B WS35.00-P-0204-01B
Part 240 589 00 33 04 Threaded spindle FG 35/Set B WS35.00-P-0204-02B

Use:

Removal and insertion device for removing front hydro-mount at rear subframe.

VEHICLE

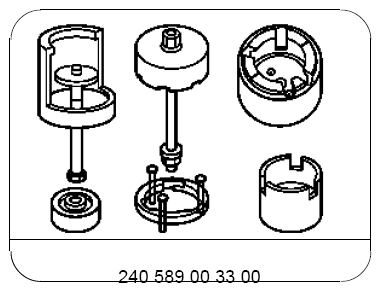

Fig 1: Identifying Removal And Insertion Device (240 589 00 33 00)
G07888474Courtesy of MERCEDES-BENZ USA
