230 589 00 43 05 Shaft - WS35.00-P-0184-05B

FG35/Set B

MODEL 211, 230

Use:

Spindle (173 mm) from set W 230 589 00 43 00

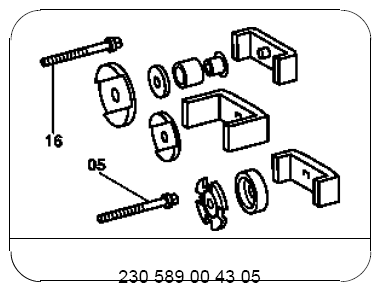

Fig 1: Identifying Shaft (230 589 00 43 05)

G07888458

Courtesy of MERCEDES-BENZ USA
