202 589 03 43 00 Puller and installation tool - WS35.00-P-0145C

FG 35/Set C

MODEL 170, 202, 208

Use/specification:

Puller and installation tool for rear rubber mount from rear axle carrier

VEHICLE

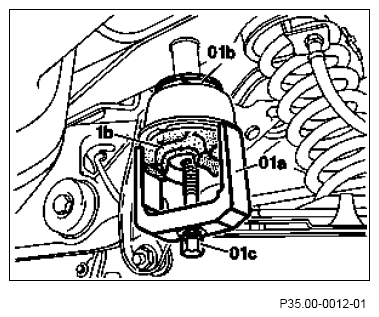

Fig 1: Pulling Rear Rubber Mount
G07765407Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Puller And Installation Tool (202 589 03 43 00)
G07714247Courtesy of MERCEDES-BENZ USA
