Adjust hydraulic limiter - AR46.25-P-3090-02F
TEST AND ADJUSTMENT VALUES OF STEERING GEAR
| Number | Designation | Steering 765.502 in models 460, 461 | Steering 765.503 in models 461, 463 with 15 and 16 rim | Steering 765.503 in model 463 with 18 rim | |
|---|---|---|---|---|---|
| BE46.20-P-1006-01B | Distance between stop bolt and axle stop when inserting the hydraulic end limiter and left wheel steer angle | mm | 2 to 12 | 2 to 5 | 5 to 10 |
| BE46.20-P-1007-01B | Distance between stop bolt and axle stop when inserting the hydraulic end limiter and right wheel steer angle | mm | 2 to 12 | 2 to 5 | 2 to 5 |

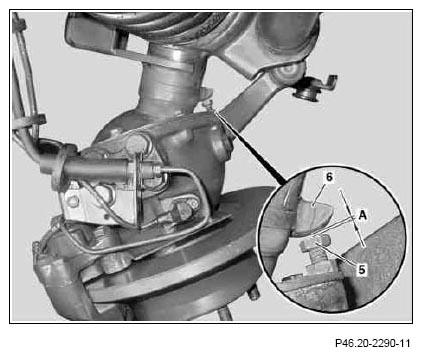

The distance (A) is the distance between stop screw (5) and axle stop (6) when inserting the hydraulic limiter.
If distance (A) for left and right wheel lock is too large or too small in total, then the hydraulic steering travel must be corrected.
In doing so distance (A) during left wheel lock must always be at least the same, better is when it is larger however than for the right wheel lock. This is contingent however on the mechanical axle stop having been correctly configured beforehand.
- 1 Undo bolt (2) on steering gear and remove locking plate (3).
- 2.1 Turn in steering limiter valve (1) by approx. one quarter turn.
If distance (A) is too large.
- 2.2 Turn out steering limiter valve (1) by approx. one quarter turn.
- 3 Check hydraulic limiter again, repeat setting procedure if necessary.
- 4 Mount locking plate (3) and turn in bolt (2).
