In-car temperature sensor with ventilation fan, location/task/function - GF83.57-P-2107T
MODELS 211.0/2/6

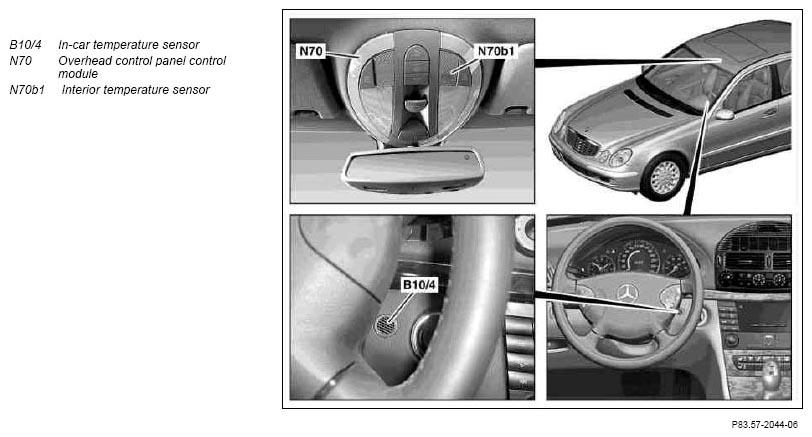

Shown on model 211.0
| In-car temperature sensor with aspirator blower, position | The in-car temperature sensor (N70b1) is located in the overhead control panel control unit (N70). The in-car temperature sensor (B10/4) is located on the left next to the electronic ignition switch control unit (N73). |
|
| In-car temperature sensor with ventilation blower, task | The in-car temperature sensor (N70b1) serves to record the temperature in the upper vehicle interior. The in-car temperature sensor (B10/4b1) serves to record the temperature in the lower vehicle interior. |
|
| In-car temperature sensor with aspirator blower function | GF83.57-P-2100-02T |
