Running diagram of poly V-belt - AR13.22-P-3902-02TS

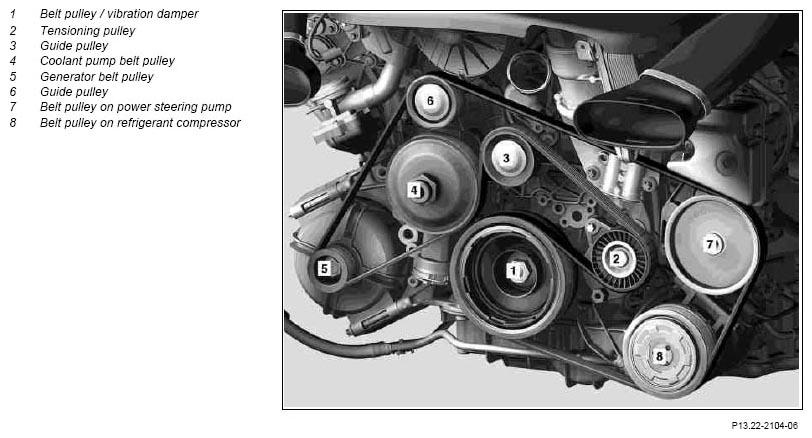

Fig 1: Running Diagram Of Poly V-Belt

G07507805

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
