Check poly-V belt in visible range for wear - AP13.22-P-1352TS

ENGINE 272.922 in MODEL 211.052/252

ENGINE 272.943 in MODEL 211.054/254

ENGINE 272.964 in MODEL 211.056/256

ENGINE 273.960 in MODEL 211.072/272

ENGINE 156.983 in MODEL 211.077/277

ENGINE 272.972 in MODEL 211.087/287

ENGINE 273.962 in MODEL 211.090/290

ENGINE 272.944 in MODEL 211.092/292

ENGINE 272.985 in MODEL 211.057/257

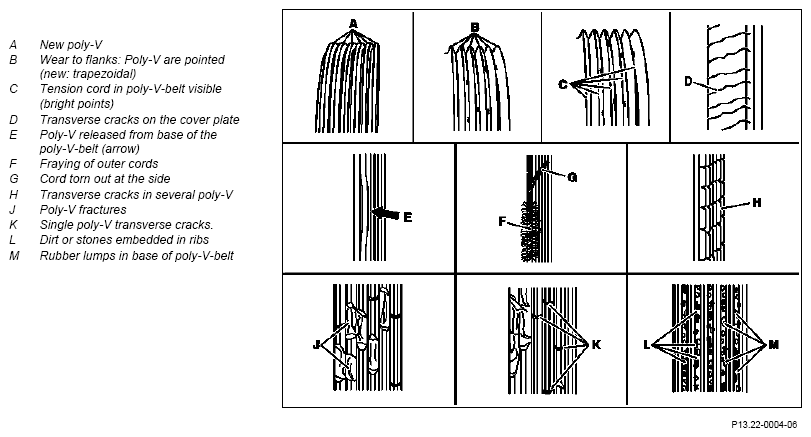

Damage diagram

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Open engine hood
	Opening engine hood, moving to upright position and closing		AR88.40-P-1000T
	Checking

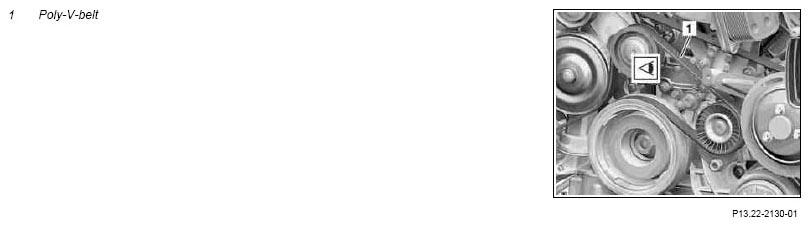

2	Check poly-V-belt (1) for wear at visible points and compare with damage profiles	Replace the poly-V-belt (1) if worn:
		Engine 156	AR13.22-P-1202TMG
		Engine 272, 273	AR13.20-P-0001TS
3	Raise vehicle with lifting platform
	Lift/jack up vehicle		AR00.60-P-1000T
4	Remove bottom engine compartment paneling	Installation:  Install engine compartment paneling only after completing all maintenance jobs.
	Remove and install bottom engine compartment paneling		AR61.20-P-1105T
	Checking
5	Check poly-V-belt (1) for wear at points visible when vehicle is raised, and compare with damage profiles	Replace the poly-V-belt (1) if worn:
		Engine 156	AR13.22-P-1202TMG
		Engine 272, 273	AR13.20-P-0001TS
6	Install in the reverse order
