Two-way radio switch, location/task/function - GF82.71-P-2101T
MODELS 211.0 /2 with CODE (450) Taxi version

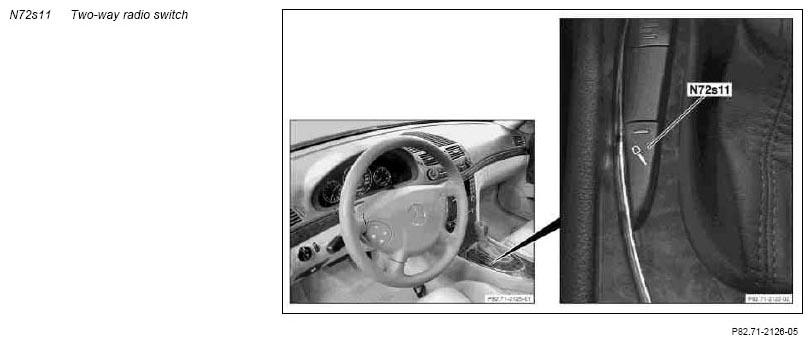

| Two-way radio switch, location | The two-way radio switch (N72s11) is integrated into the lower control panel control unit (N72) . |
| Two-way radio switch, task | On actuation of the switch, the two-way radio (A49) is switched to transmission mode. At the same time, the radio speaker output is switched off. |
| Two-way radio switch, function | The switch state is sent from the lower control panel control unit (N72) to the CAN-interior as a message. This message is received by the special vehicle multifunction control unit (SVMCU [MSS]) (N26/9). |
