Satellite radio, location/task - GF82.85-P-3113TUA

MODEL 211.0 /2 up to 30.6.06 with CODE (528) HIGH Class USA with CODE (536) SIRIUS satellite radio

Shown on model 211.0

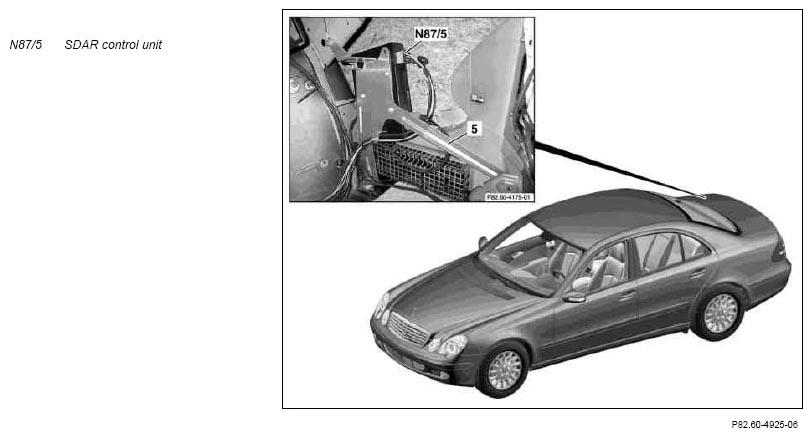

Fig 1: Locating SDAR Control Unit
G07504752Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Satellite radio, location The SDAR control unit (N87/5) is attached to a bracket on the right in the luggage compartment (model 211.0) or in the load compartment (model 211.2) behind the inner wheelhouse.
Satellite radio, task   GF82.85-P-3113-01TUA
