Radio satellites, location/task - GF82.85-P-3113TU

MODEL 211.0 /2 up to 30.6.06 with CODE (528) HIGH Class USA

Shown on model 211.0

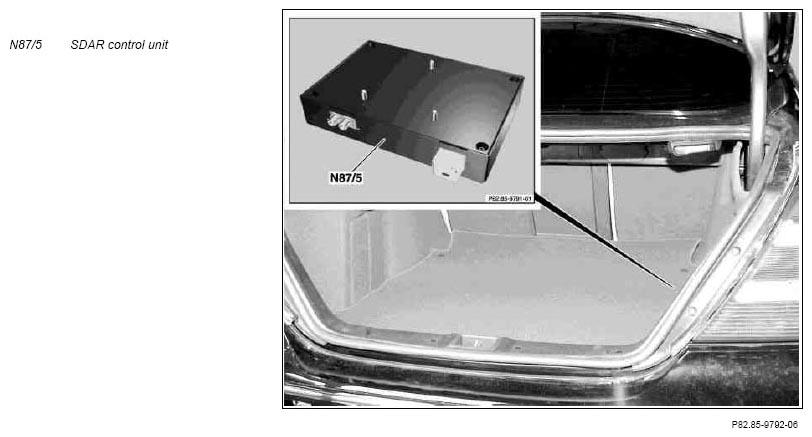

Fig 1: Locating SDAR Control Unit
G07504751Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Satellite radio, location The SDAR control unit (N87/5) is installed in the right of the luggage compartment on a bracket on the wheelhouse.
Satellite radio, task   GF82.85-P-3113-01TU
