E-CALL control module, location/task/design - GF82.95-P-4200TJ

MODEL 211.0 /2 with CODE (529) HIGH Class Japan

Shown on model 211.0

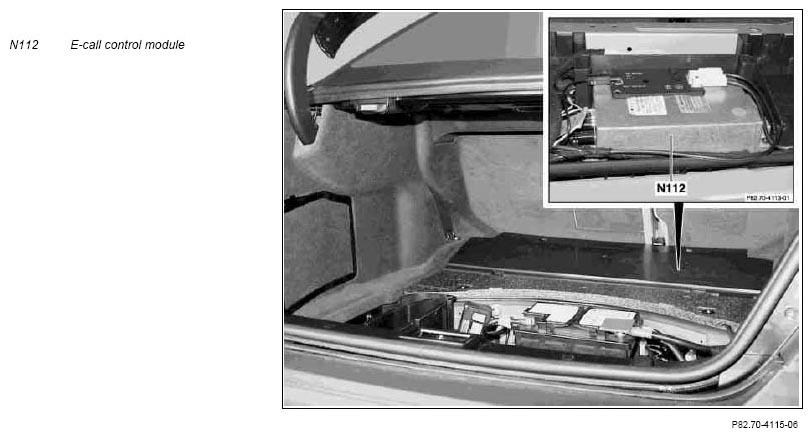

Fig 1: Locating E-Call Control Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

E-call control module, location	The E-call control module (N112) is located on the luggage compartment floor behind the rear bench seat. Model 211.2	GF82.95-P-4200-01TJ
E-call control module, purpose	Communications platform for: Telephone Traffic services Calculation of vehicle location Detection of a vehicle rollover
E-call control module, design	Stable metal housing with 4-hole mount Integrated gyro sensor Integrated rollover sensor Integrated GPS control module
