Bottom control panel control unit design - GF54.21-P-4116-02T
Design
Structure

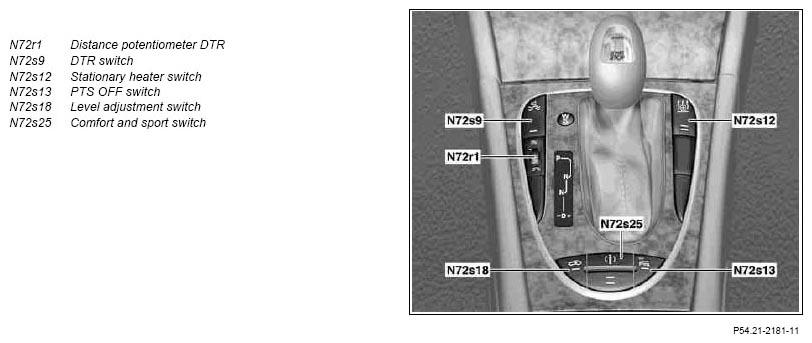

Fundamentally, the lower control panel control module (N72) consists of the series block and both of the specially equipped blocks with the switches:
- DTR Distance potentiometer (N72r1)
- DTR switch (N72s9)
- Two-way radio switch (N72s11) (code 450)
- PTS OFF switch (N72s13)
- Level positioning switch (N72s18)
- Comfort and sport switch (N72s25)
The built-in switches in the lower control panel control module (N72) have a search lighting and a partial function lighting.
