Separate inner C-pillar side wall panel - AR63.10-P-0700-01T

Fig 1: Identifying Spot Weld Milling Cutter (201 589 00 51 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 RPM)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

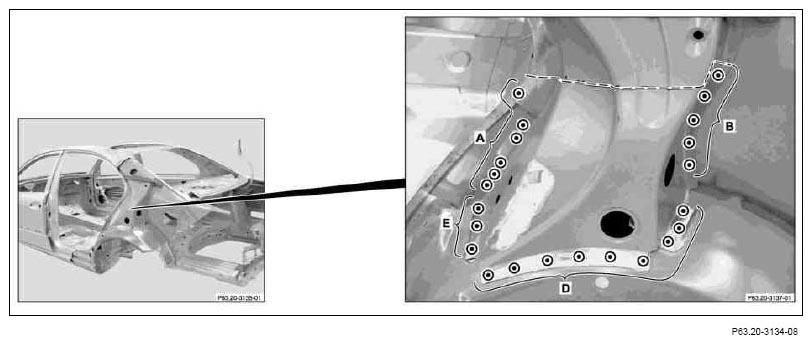

Fig 2: Locating Spot Welds (Areas A, B, D And E)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Mark separation point and cut with body saw.
2. Expose spot welds and cut out with spot weld cutter (areas A, B, D and E).
3. Remove C-pillar outer section

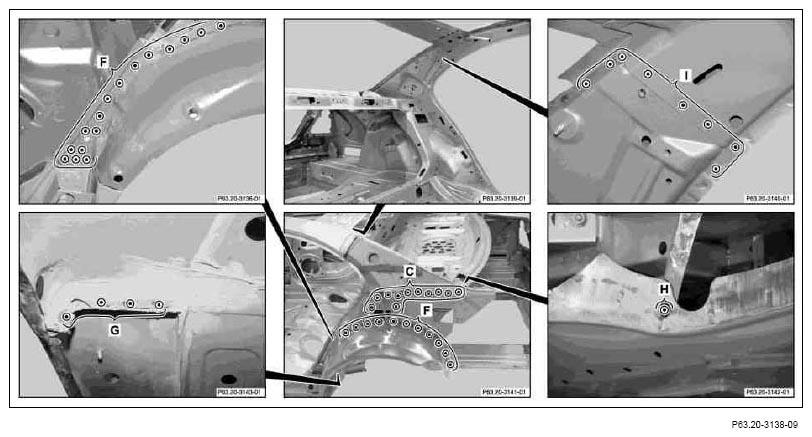

   Fig 3: Identifying Inner C-Pillar Spot Welds (Areas C, F, G, H And I)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Expose spot welds and cut out with spot weld cutter (areas C, F, G, H and I).
5. Completely remove inner C-pillar.

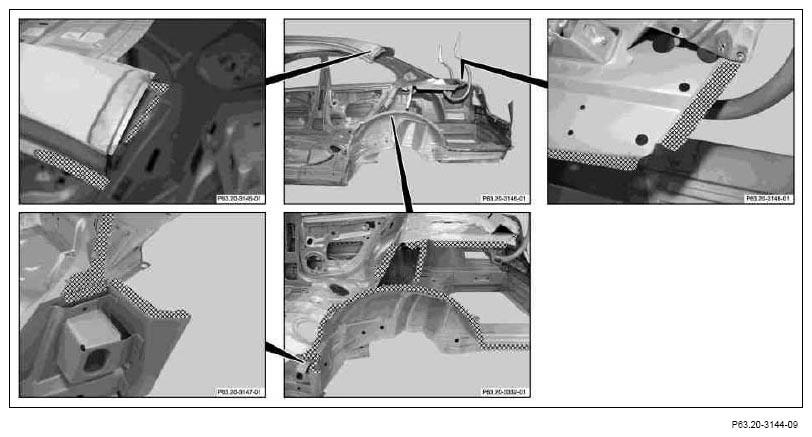

   Fig 4: Identifying Inner C-Pillar Connection Surfaces

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Then grind connection surfaces to bare metal in checked areas. Sand spot welding flanges to bare metal on both sides.
7. Remove grinding and drilling chips using wet/dry vacuum cleaner.
8. Coat insides of spot welding flanges and rivet connections with zinc dust paint.

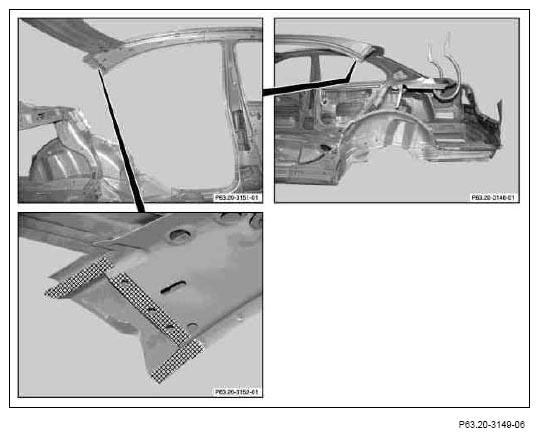

Fig 5: Locating C-Pillar Connection Surfaces

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
