Remove main floor front section - AR63.40-P-1180-13T

Fig 1: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G07290434Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-01A Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A Cutting disk, dia. 65 mm, 80 m/s (max. 23,500 RPM)
WH58.30-Z-1024-04A Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 RPM)
WH58.30-Z-1004-20A Hot-air gun
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A Angle grinder (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42

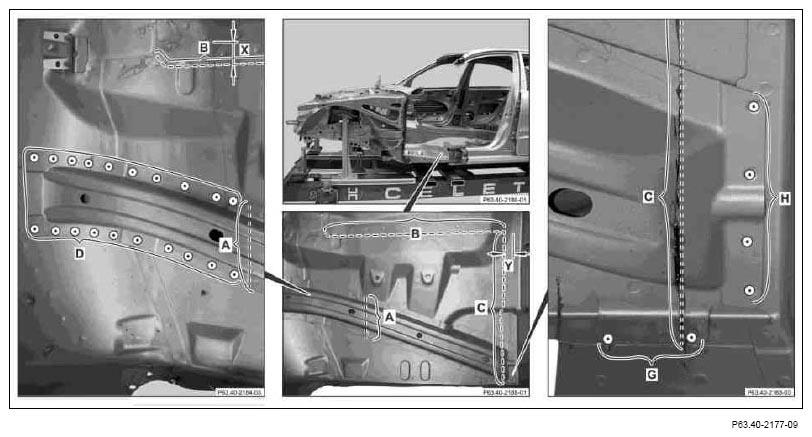

Fig 2: Locating Separation Points (Areas A, B And C) & Spot Welds (Areas D, G & H)
G07508325Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Mark separation points and cut with body saw (areas A, B and C).

    IMPORTANT Dimension X approx. 28 mm, dimension Y approx. 30 mm

  2. Expose spot welds and cut out with spot weld cutter (areas D, G and H).
  3. Remove sections from connection carrier.
  4. Expose spot welds and cut out with spot weld cutter (areas E and F).
  5. Heat up main floor with hot air gun (area I).

    IMPORTANT Area I is glued.

  6. Remove main floor front section.

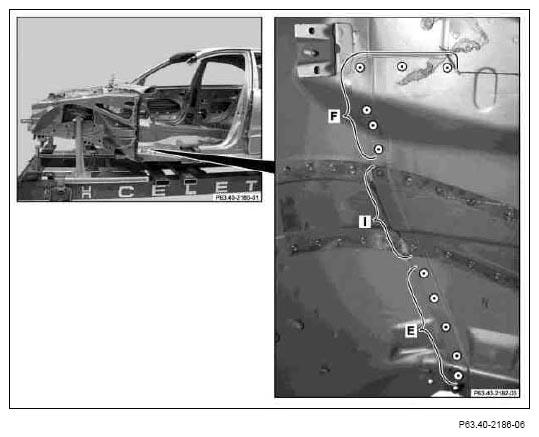

    Fig 3: Locating Main Floor Area I & Identifying Spot Welds (Areas E And F)
    G07508326Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  7. Expose spot welds and cut out with spot weld cutter (area J).
  8. Remove remaining piece from reinforcement.

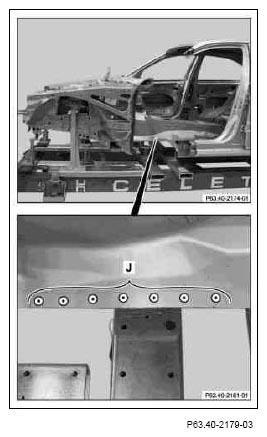

    Fig 4: Locating Spot Welds (Area J)
    G07508327Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  9. Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides
  10. Remove grinding and drilling chips using wet/dry vacuum cleaner.
  11. Coat insides of spot welding flanges and rivet connections with zinc dust paint.

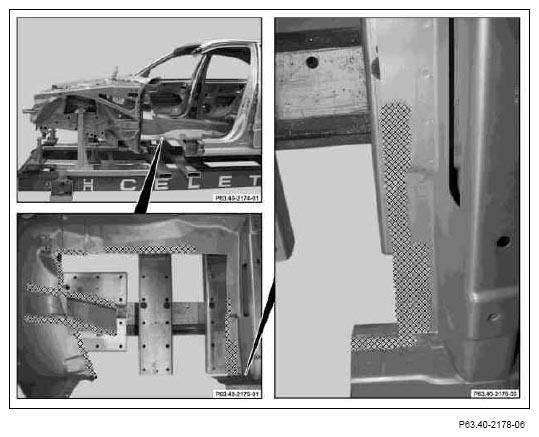

Fig 5: Identifying Connection Surfaces Shaded Areas
G07508328Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
