Prepare inner C-pillar side wall panel - AR63.10-P-0700-02T

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-02A	Hole punching pliers, dia. 6 mm.
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

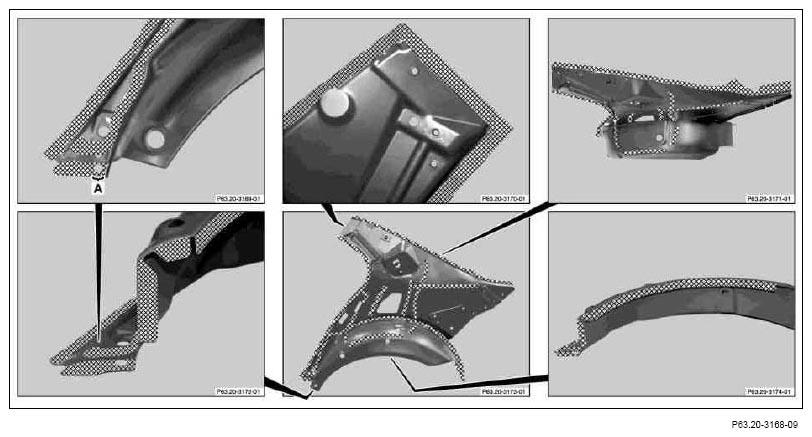

Fig 1: Locating 7 mm Dia. Hole (Area A) & Connection Surfaces

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Punch 7 mm dia. hole (area A).
2. Then grind connection surfaces to bare metal in checked areas. Sand spot welding flanges to bare metal on both sides
3. Coat insides of connection surfaces with zinc dust paint

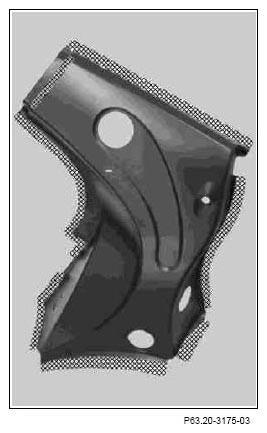

   Fig 2: Identifying Inner C-Pillar Side Wall Panel Connection Surfaces

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
