Install/weld in B-pillar with side longitudinal member - AR63.20-P-0550-03T

Fig 1: Identifying Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Inspection And Welding Device (211 589 00 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42
BR00.45-Z-1001-13A	Blind rivet 6.4x14	A 003 990 35 97

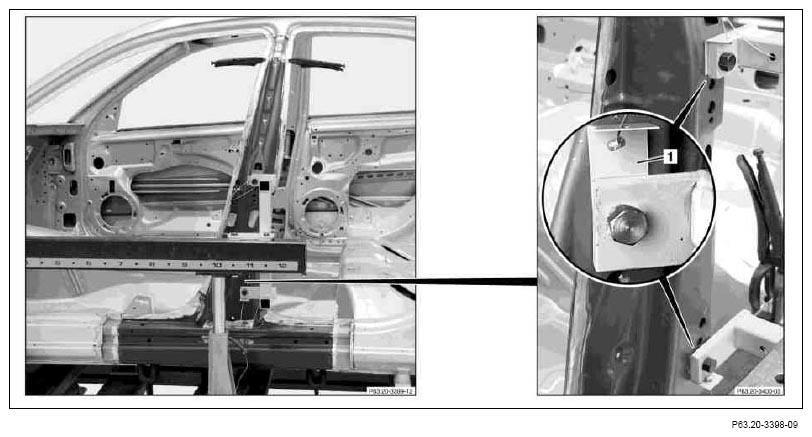

Fig 3: Fitting Inner B-Pillar, B-Pillar And Side Longitudinal Member

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Fit inner B-pillar, B-pillar and side longitudinal member and fasten.
2. Install side portal frame with check and welding gage and fasten B-pillar position.

   Use spacer plate (1).

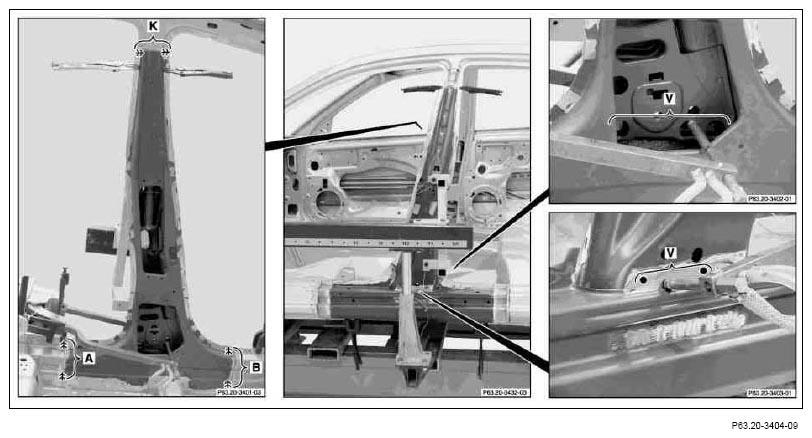

   Fig 4: Welding In B-Pillar And Side Longitudinal Member

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Weld in B-pillar and side longitudinal member with (area V).
4. Tack weld inner B-pillar (areas A, B and K).
5. Remove B-pillar with side longitudinal member and check and welding device.
6. Weld in B-pillar and side longitudinal member with (area G1, H1, and W).

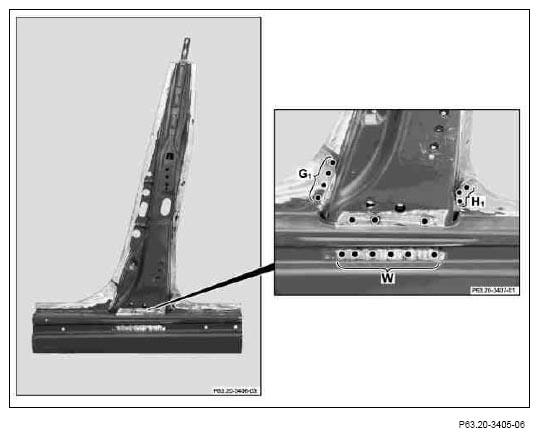

   Fig 5: Welding In B-Pillar And Side Longitudinal Member (Area G1, H1, And W)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Weld in inner B-pillar with (areas A, B, K and S).

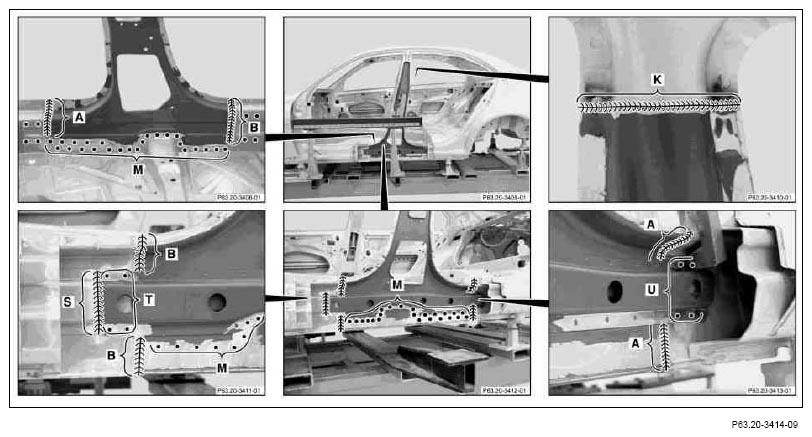

   Fig 6: Welding In Inner B-Pillar

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
8. Weld in inner B-pillar with (areas M, T and U).
9. Grind MIG welds down flat at connection surfaces.
10. Clean inner welding area with wire brush and coat with zinc dust paint (area A, B, K, M, S, T and U).
11. Install new foam parts FG68 (analog to old part).

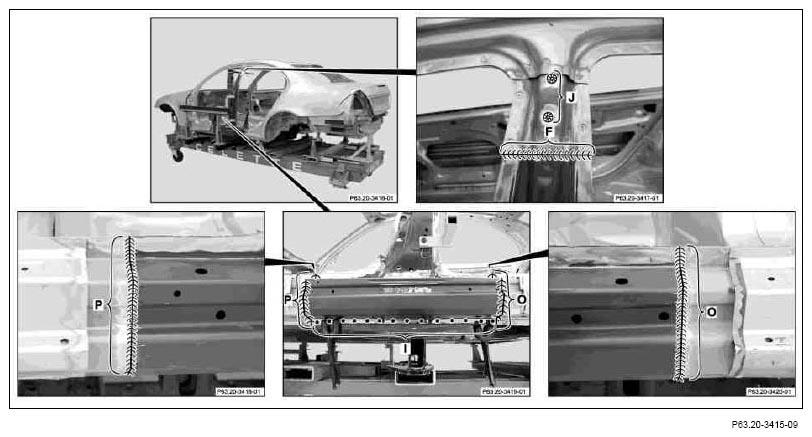

    Fig 7: Welding In B-Pillar And Side Longitudinal Member (Area F, J, O And P)

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
12. Install B-pillar with side longitudinal member and check and welding device and fasten.
13. Weld in B-pillar with (area J).
14. Weld in B-pillar and side longitudinal member with (area F, O and P).
15. Weld in side longitudinal member with (area I).
16. Grind MIG welds down flat at connection surfaces.
17. Clean inner welding areas with wire brush and coat with zinc dust paint (areas F, J, O and P).
18. Remove check and welding device
19. Install B-pillars and longitudinal member paneling with check and welding device and fasten.
20. Partially remove side portal frame.
21. Drill dia. 6.5 mm rivet holes (area N).
22. Remove B-pillars and longitudinal member paneling, deburr rivet holes on both sides.
23. Install new foam parts FG68 (analog to old part).

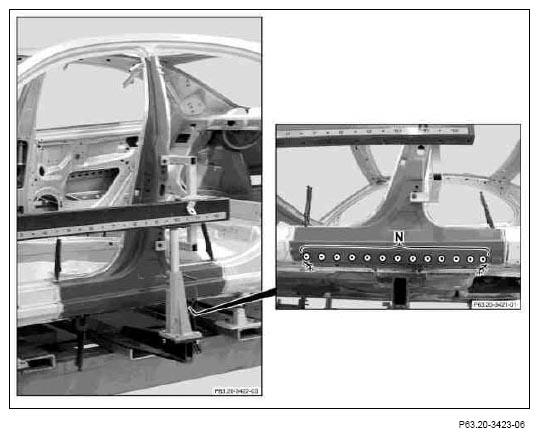

    Fig 8: Locating Rivet Holes (Area N)

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

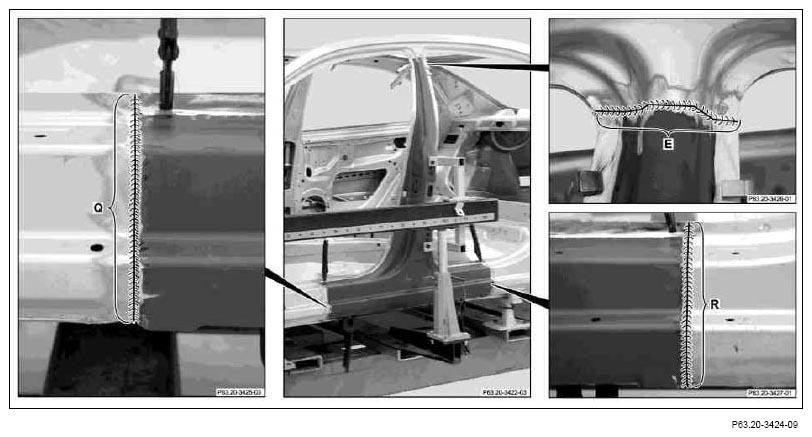

    Fig 9: Welding In B-Pillar And Longitudinal Member Paneling (Areas E, Q And R)

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
24. Install B-pillars and longitudinal member paneling with check and welding device and side portal frame and fasten.
25. Weld in B-pillar and longitudinal member paneling with (areas E, Q and R).
26. Remove check and welding device and side portal frame.

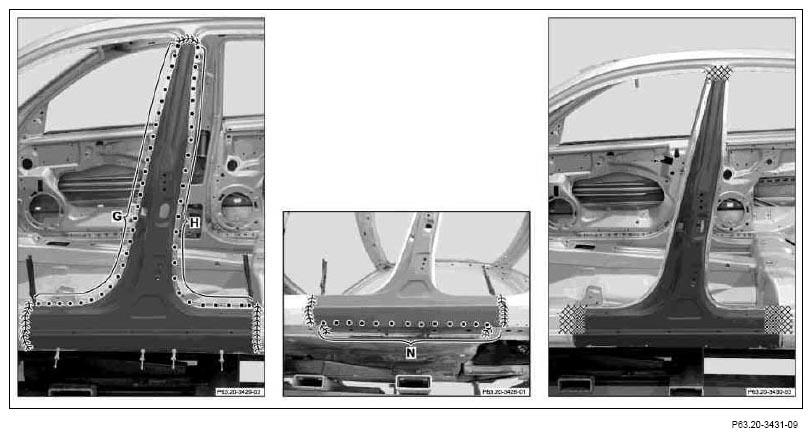

    Fig 10: Locating Welds In B-Pillars And Longitudinal Member Paneling (Areas G And H) & Rivets (Area N)

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
27. Weld in B-pillars and longitudinal member paneling with (areas G and H).
28. Rivet B-pillar and longitudinal member paneling with dia. 6.4 x 14 mm Polygrip flat head rivets (area N).
29. Grind MIG welds down flat and clean with wire brush (areas E, Q and R).
30. Fill B-pillar and longitudinal member paneling with filling solder in shaded areas and smooth.
