Prepare window for installation - AR67.10-P-1000-03P
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1015-02A | Repair kit, glazing, installing window, 2-component adhesive | A 220 670 00 93 |
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |
| BR00.45-Z-1035-02B | Repair kit, installing windshields, 1-component adhesive | A 221 670 81 01 |

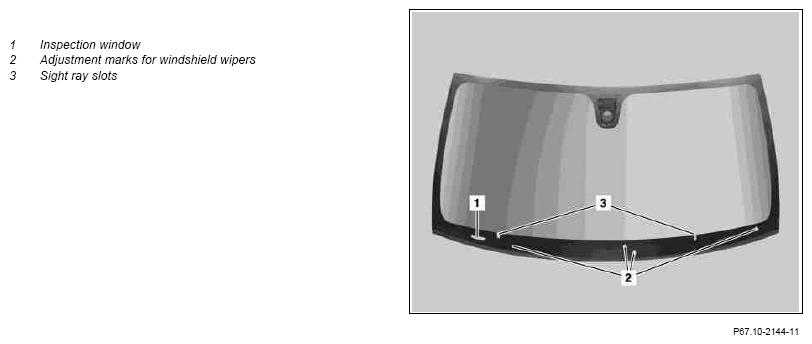

Shown on windshield on model 171

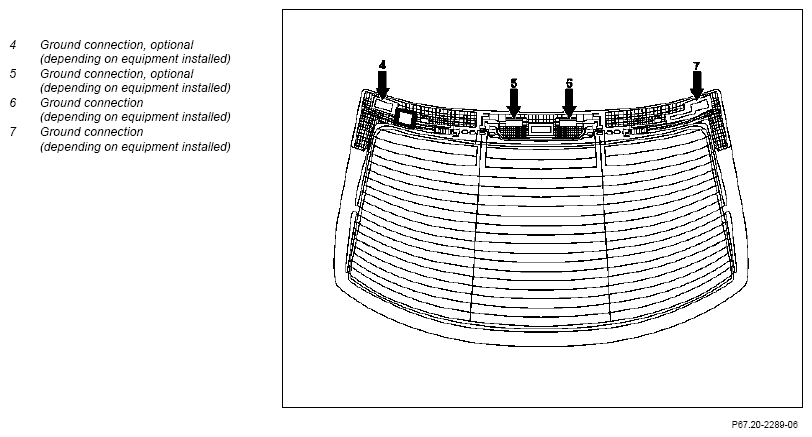

Shown in rear window, model 203.0
The gluing area on the window must be absolutely free of dust and grease to prevent paint adhesion problem of the adhesive material when glazing.
Replacement parts for windshields are generally delivered with a viewing window (1) at the bottom left. If the viewing window (1) is not required, always coat this area at the inside of the window with primer from repair kit before installing window.
Do not paint over adjustment markings for windshield wiper (2) and vision slits (3) in lower area of screen pattern on windshield.
On vehicles with present ground connections (6, 7) or optional ground connections (4, 5) to body on rear window, do not paint over cutouts (arrows).
- Check window for scratches and damage, replace if necessary.
- Fasten electrical connectors from inside or outside of window with adhesive tape, depending on version.
Perform following steps 3 and 4 only when using previously installed window.
- Cut off residual adhesive on window with scraper down to a height of approx. 2 mm. Remove adhesive material residues.
- Repair damaged primer layer on window with primer included in repair kit.
- Clean window.
- Apply cleaner (activator) from repair kit to gluing area on window and rub dry with rag.
- Coat gluing area on window with primer included in repair kit (with max. 20 mm).
