Line up rear wall window in the body opening - AR67.20-P-2000-04P

TEST VALUES FOR LIFTGATE WINDOW, REAR WINDOW

Number	Designation			Model 203.0
BE67.20-P-1001-01E	Distance between upper edge of shaped rubber gasket and rear edge of roof	Dimension "A"	mm	5
BE67.20-P-1001-01E		See picture		-

TEST VALUES FOR LIFTGATE WINDOW, REAR WINDOW

Number	Designation		Model 211.0
BE67.20-P-1001-01F	Distance between rear window molding at top and fixed glass element at rear	mm	5
BE67.20-P-1002-01F	Distance between molding of rear window and rear edge of roof	mm	5

TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW

Number	Designation			Model 209
BE67.20-P-1001-01G	Distance between top edge of rear window and rear edge of roof	Dimension "A"	mm	5
BE67.20-P-1001-01G		See picture		-

TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW

Number	Designation		Model 207.3	Model 212
BE67.20-P-1001-01L	Distance between top edge of rear window and transition between rabbet and rear edge of roof	mm	5 (± 1)	4.5 (± 1)

TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW

Number	Designation		Model 218
BE67.20-P-1001-01L	Distance between top edge of rear window and transition between rabbet and rear edge of roof	mm	4.5 (± 1)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 203.0

Fig 2: Identifying Profiled Rubber Seal, Body Flange And Rear Window (Model 203.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 211.0

Fig 3: Identifying Profiled Rubber Seal, Body Flange And Rear Window (Model 211)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 212.0

Fig 4: Identifying Profiled Rubber Seal, Body Flange, Rear Window & Adhesive Bead

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Attach cup suction tool on rear window (c).
Suction lifting device

gotis://K_67.0_03.0
Place rear window (c) on body flange (b) with aid of helper.
Align rear window (c) in body opening.
Adjust distance dimension (A) with the aid of the feeler gauge

On model 197.3 and model 230.4 with code (P99) Special model "AMG Black Series" the rear window (c) is not adjusted with the feeler gauge but with the help of an assistant is aligned centrally and parallel with the body opening.

Fig 5: Identifying Position Of Rear Window
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 209.3

Illustrated on model 203.0

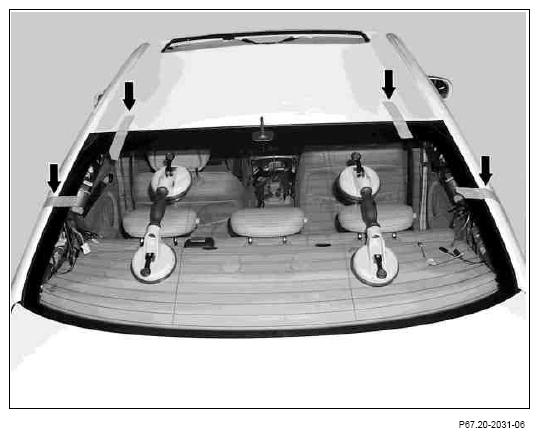

Glue on strips of tape (arrows) at top and side.

5.1 On model 203.0, 207.3, 209.3, 211.0, 212.0/1, 218.3 ad 230.4 cut adhesive strips (arrows) at outer edge of rear window.
Do not remove strips of adhesive tape (arrows).
5.2 On model 197.3 cut through the adhesive tape strips (arrows) at transition of the rubber seal of the rear window to the body flange.
6 Remove rear wall window from vehicle

Fig 6: Locating Adhesive Tape Strips On Rear Window
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
