Cut out windshield with cutting blade - AR67.10-P-1000-01TS

Tape up surfaces zones on window cutout on front edge of roof and left and right A-pillars with adhesive tape (2).
Attach adhesive tape (2) to prevent paint damage.
Remove seal strip from windshield (1) at top to front edge of roof with suitable tool.
Cut adhesive bead and support bead on windshield (1) with window removal tool (area B).

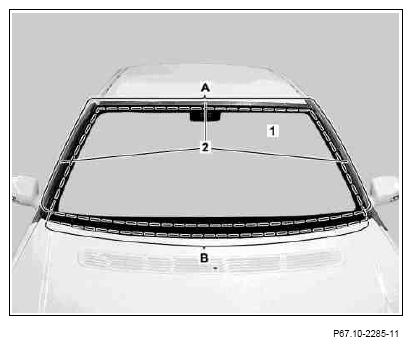

Fig 1: Identifying Adhesive Tape, Adhesive Bead And Support Bead On Windshield
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

FSC 1.6 window removal tool

gotis://K_67.0_01.0

Model 211t Cutting blade, L-shape, cutting length 25.4 mm:

Order no. 6 39 03 207 01 2, www.fein.com

Model 212: Cutting blade, Z-shape, cutting length 60 mm

Order no.:6 39 03 081 01 3, www.fein.com

Shown on model 211
Cut through adhesive seam on windshield (1) in connecting points on left and right A-pillar and front edge of roof with window removal tool (area A).
FSC 1.6 window removal tool

gotis://K_67.0_01.0

Model 211t Cutting blade, L-shape, cutting length 19 mm

Order no. 6 39 03 208 01 0, www.fein.com

Model 212: Cutting blade, L-shape, cutting length 25.4 mm

Order no.:6 39 03 207 01 2, www.fein.com

Place cloth (4) between windshield (1) and engine hood to protect engine hood.
Position cup suction tool (3) in upper third of windshield (1) and lift windshield (1) away from body flange.
Vacuum lifting tool for special protection vehicles, cup suction tool

gotis://K_67.0_03.0

Aid of a helper is required for guiding the windshield (1), otherwise adjacent body parts and the windshield (1) can be damaged.

When performing accident repair, check whether it is necessary to install a new windshield.

Detach windshield (1) from body flange in upper area first, then pry out upward.

Shown on model 211

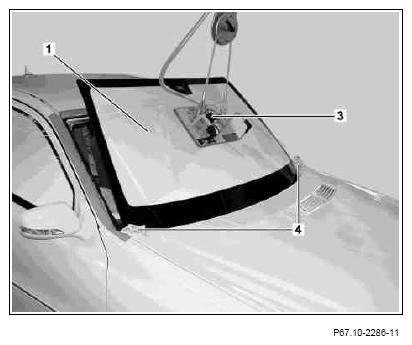

Fig 2: Removing Windshield
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
